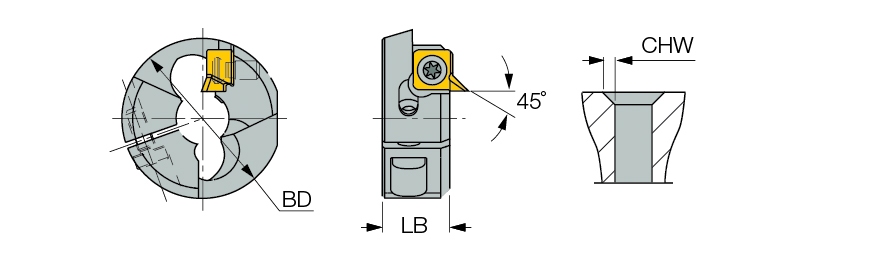

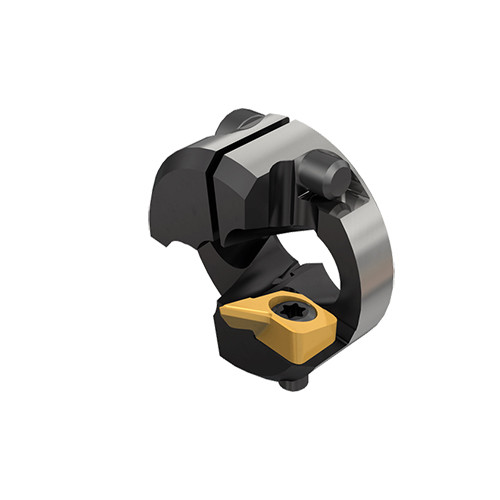

RING DCM 145
| Cutting Diameter Maximum (DCX) | 0.587″ | Tool Type | Chamfering drills |
| Cutting Diameter Minimum (DCN) | 0.571″ | Tool Diameter | 0.587″ |
| Master Insert Identification (MIID) | XOGX | Measurement Type | Inch |
| Shank Size (SS) | DCM 0571 | PackSize | 1 |
| shank_type | Whistle Notch | Remarks | RING DCM can be mounted only on DCM 3XD and DCM 5XD drills. |
| Application | | Chamfering | | Body Material | Steel |
Product Features

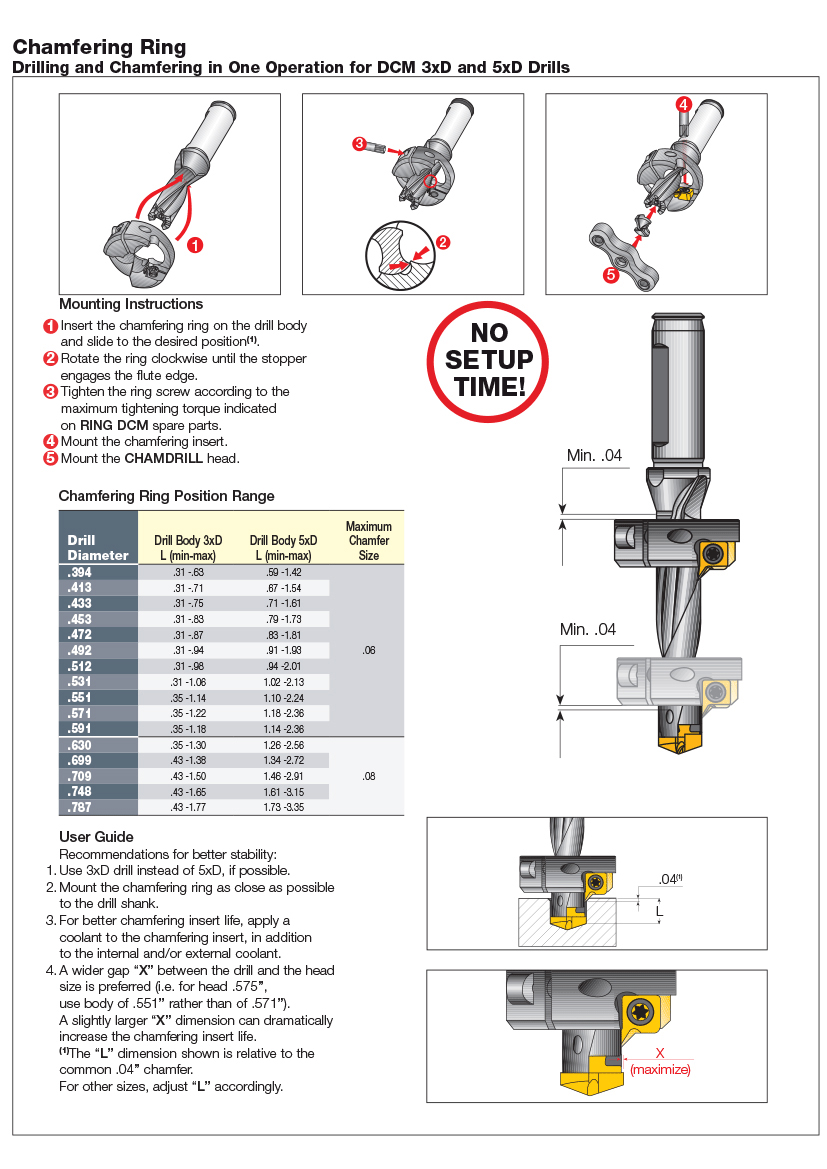

| Family Description | Chamfering ring mounted on CHAM-DRILL drills for drilling and chamfering in one operation | Country of Origin | Israel |
| Remarks | RING DCM can be mounted only on DCM 3XD and DCM 5XD drills. |
Shipping Info
Package Weight
0.496
Related Documentation
Screw SR M5x15-maximum tighening torque 7 Nm. Screw SR M6x20-maximum tighening torque 10 Nm.
