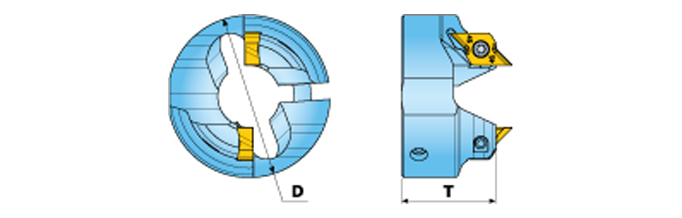

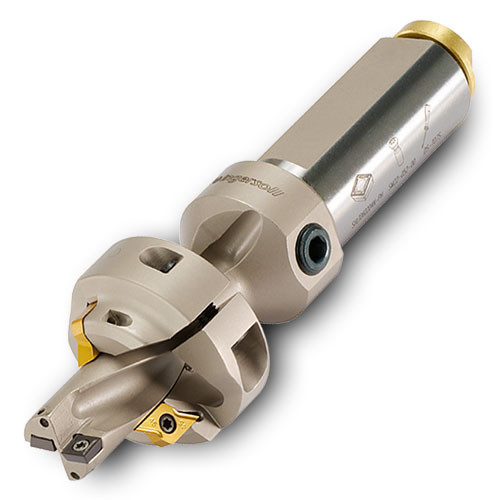

CB130R02
| Body Diameter (BD) | 1.34″ | Application | | Chamfering | Slanted Shoulder & Chamfer | |
| Cutting Diameter Maximum (DCX) | 11.4 mm | Tool Type | Chamfering drills |
| Cutting Diameter Minimum (DCN) | 10.5 mm | Measurement Type | Inch |
| Master Insert Identification (MIID) | XCGT 09... | PackSize | 1 |
| Shank Length (LS) | 60 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Shank Size (SS) | 32 mm | Body Material | Steel |
| shank_type | Whistle Notch |
Product Features
| Family Description | Fits dia12.7-25.4 mm, 3, 4 & 5xD Bodies Max. chamfer .118″ ª 45° | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.265
