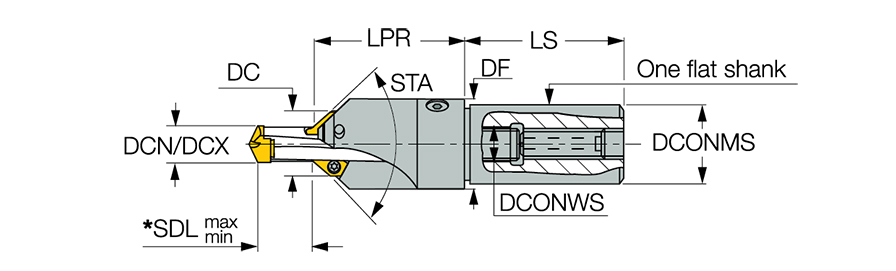

| Cutting Diameter Maximum (DCX) | 0.567″ | Tool Type | Chamfering drills |
| Cutting Diameter Minimum (DCN) | 0.531″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | XCGT 09... | PackSize | 1 |
| Shank Length (LS) | 2.36″ | Remarks | For each SDLmin SDLmax pair, click on More Info in order to see which drill they refer to *SDLmin & SDLmax dimensions are based on the 45° chamfering insert It is recommended to apply external coolant on the chamfering inserts. Reduce the recommended feed and speed of the drill being used by 50% when machining maximum chamfer size Chamfering angle (STA) depends on the chamfering insert being used |
| Shank Size (SS) | 1-1/4″ | Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| shank_type | Weldon | Body Material | Steel |
| Application | | Chamfering | Drilling | |
Product Features

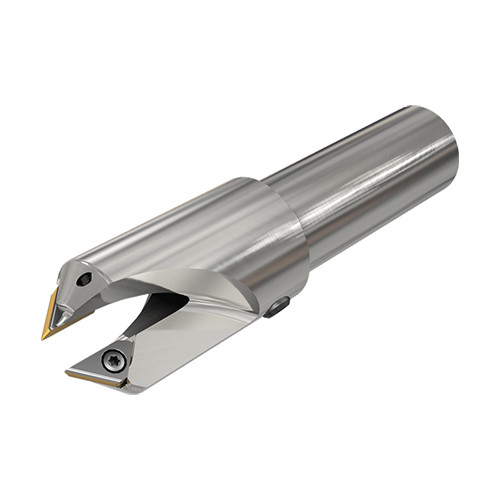

| Family Description | Drill Holders used with UNISUMOCHAM or UNICHAMDRILL drills for drilling and chamfering in one operation | Country of Origin | Israel |
| Remarks | For each SDLmin SDLmax pair, click on More Info in order to see which drill they refer to *SDLmin & SDLmax dimensions are based on the 45° chamfering insert It is recommended to apply external coolant on the chamfering inserts. Reduce the recommended feed and speed of the drill being used by 50% when machining maximum chamfer size Chamfering angle (STA) depends on the chamfering insert being used |
Shipping Info
Package Weight
1.776
