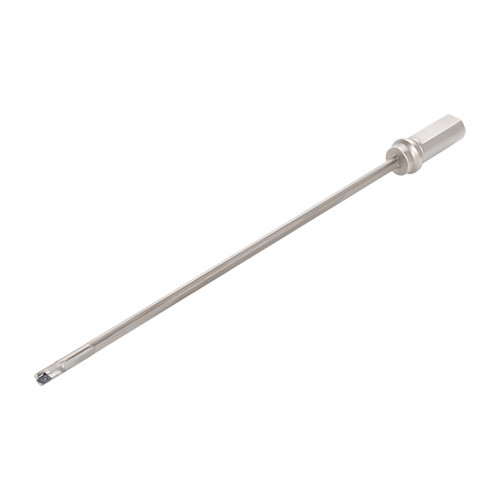

GD-DHL 0.315-35D-M20-04
Indexable Insert Drill; 0.315″ Dia. × 11.622″ LU × 0.787″ Shank Dia. ; Steel

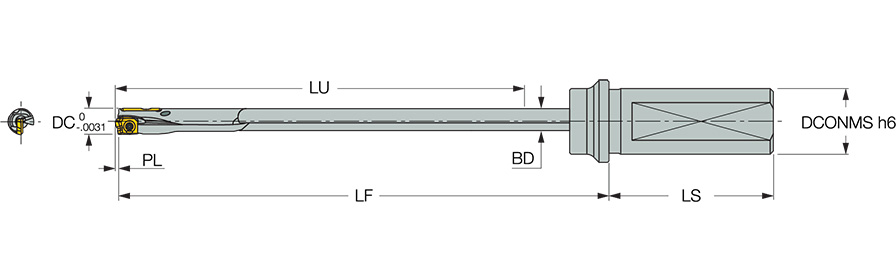

| Cutting Diameter (DC) | 0.315″ | Functional Length (LF) | 12.52″ |
| Usable Length (LU) | 11.622″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Gundrills | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.787″ | Body Material | Steel |
| Tool Type | Deep Hole / Gun Drill | Decimal Equivalent | 0.315″ |
| Shank Length (LS) | 1.968″ |
Product Features
| Family Description | Gundrills carrying the ZSGT indexable inserts, with single chip splitting cutting edge and a wiper for high hole surface quality. The drills are available in 35, 40 and 45 drilling length to diameter ratios. | Country of Origin | Japan |
Shipping Info
Package Weight
0.681
Related Documentation
Related Items
