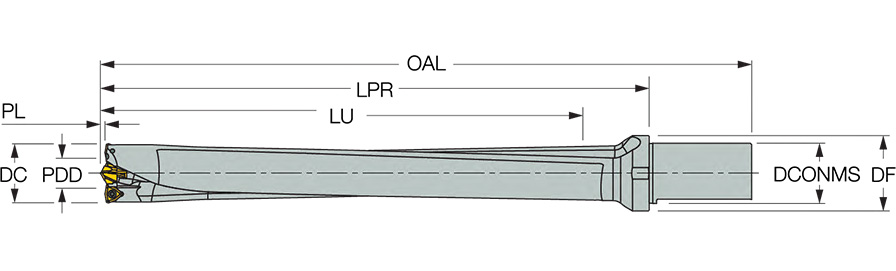

| Cutting Diameter (DC) | 45 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 315 mm | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | WCGX 070408-W-DC |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Point Length (PL) | 3.5 mm |
| Protruding Length (LPR) | 363.5 mm | Body Material | Steel |
| Overall Length (OAL) | 431.5 mm | Flange Diameter (DF) | 50 mm |
Product Features

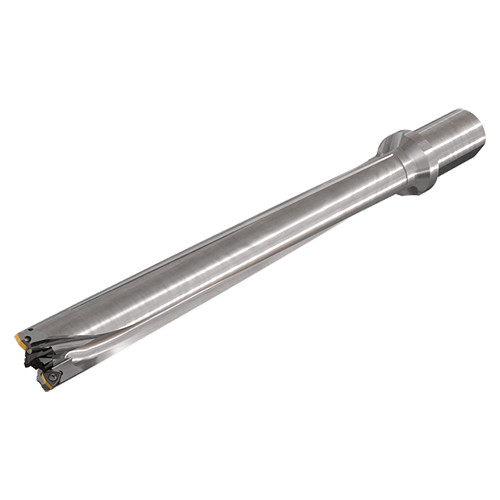

| Family Description | COMBICHAM Large Diameter Drills with WCGX peripheral inserts for the Wind Turbine Industry | Country of Origin | Israel |
Shipping Info
Package Weight
3331
