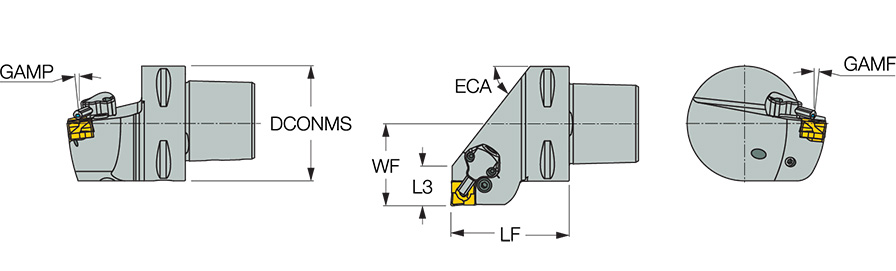

| Overall Length (OAL) | 2.913″ | Application | | Ext. 80° Diamond 95° Approach | |
| Functional Length (LF) | 1.968″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Width (WF) | 1.063″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 0.492″ | End Chamfer Angle (ECA) | 38 Degrees |
| Minimum Bore Diameter (DMIN) | 3.543″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features

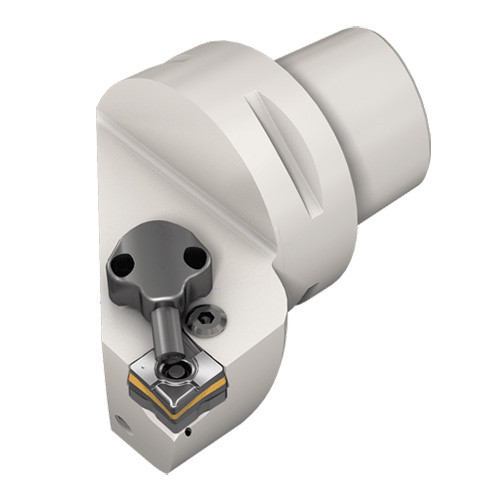

| Family Description | Lever lock tools with CAMFIX exchangeable tapered shanks and channels for high-pressure coolant, carrying CXMG 80° Rhombic Inserts | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
474
