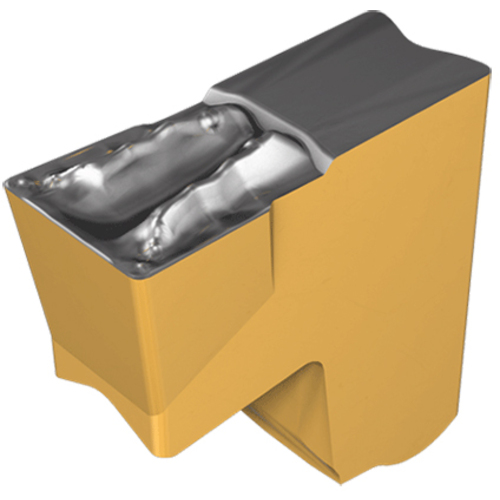

TAG N3T IC5400
Parting Off Insert; 0.12″ CW × 0.269″ Length × 0.0079″ Corner Radius ; Carbide ; TiCN+Al2O3+TiN ; IC5400

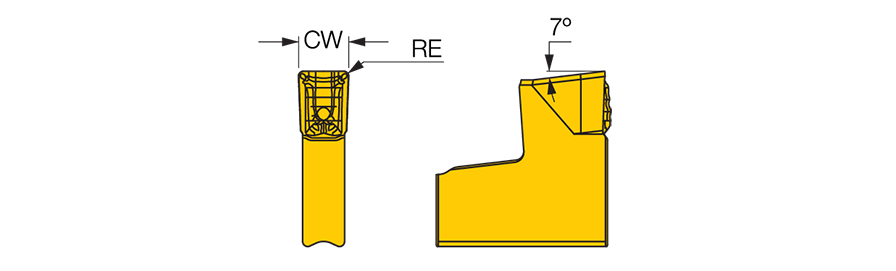

| Cutting Width (CW) | 0.12″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0055 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Insert Length (INSL) | 0.269″ | Chip Breaker Type | T |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | IC5400 | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | Y Axis Parting & grooving | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
Product Features
| Family Description | Single-ended inserts for parting and grooving, suitable for ductile materials, steel and stainless steel. | Country of Origin | Israel |
Shipping Info
Package Weight
14
