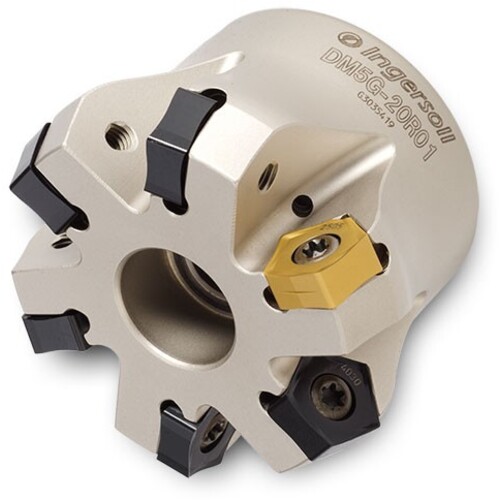

DM5G100R00
Indexable Face Mill; 105.4″ Dia. × 32″ Shank Dia. × 50″ OAL × 0.827″ LOC ; 12 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 105.4″ | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 105.4″ | Body Material | Steel |
| Cutting Item Count (CICT) | 12 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.827″ | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 32″ | Measurement Type | Inch |
| Overall Length (OAL) | 50″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.48″ | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | Cutting Edge Length: .23″ Insert Corner: .030″R | Country of Origin | Germany |
Shipping Info
Package Weight
4.409
