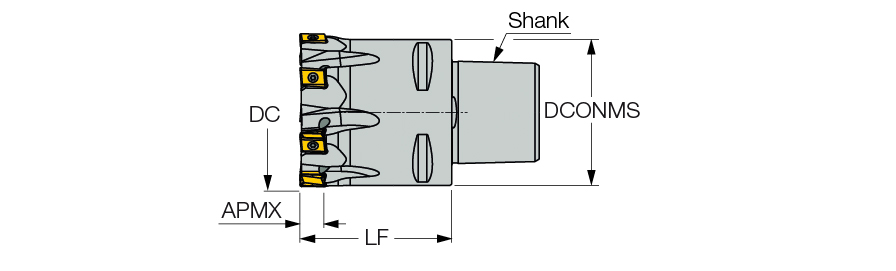

T490 FLN D44-06-C4-08
Indexable Face Mill; 1.732″ Dia. × 40 Shank Dia. × 1.772″ OAL × 0.315″ LOC ; 6 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1.732″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1.732″ | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.315″ | Application | | Facing | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 40 | Measurement Type | Inch |
| Overall Length (OAL) | 1.772″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 1.575″ | Shank Type | CAMFIX |
| Arbor Style | A | Tool Type | 90° indexable endmills |
| Master Insert Identification (MIID) | T490 LNMT 0804PNR | Connection Code Machine Side (CCMS) | CAMFIX |
Product Features
| Family Description | 90° face mills with CAMFIX (ISO 26623-1 standard) tapered shanks, carrying tangentially clamped inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.126
