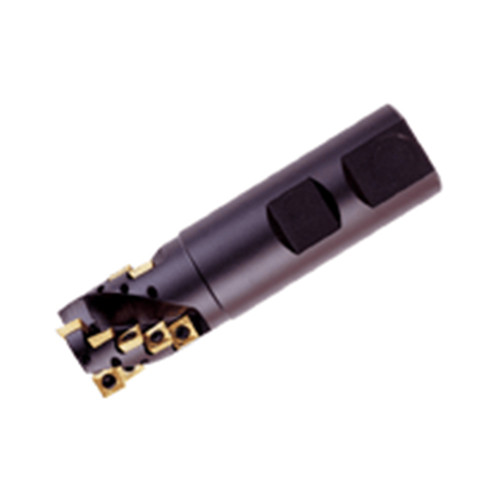

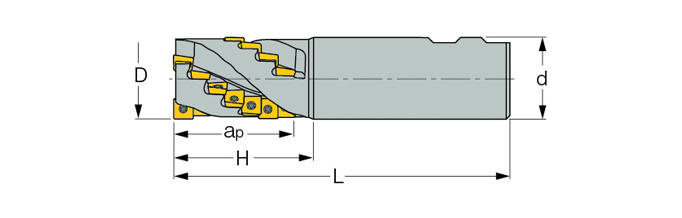

XOK D25-38-W25-M06
| Cutting Diameter (DC/DCX) | 3″ | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 21 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.827″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 2″ | Measurement Type | Metric |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Extended Flute Endmills |
Product Features
| Family Description | Extended flute endmills with S/Q/XOMT-06.. inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on "More Info". |
Shipping Info
Package Weight
.8420
