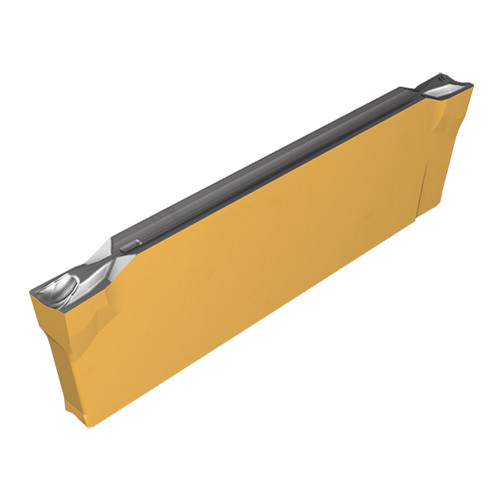

DGR 1602B-8D IC1030

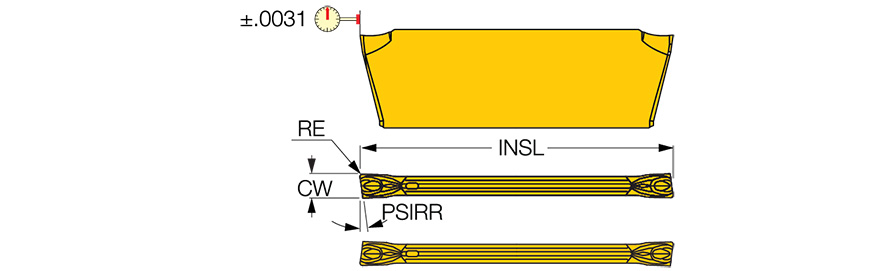

Parting Off Insert; 0.061″ CW × 0.803″ Length × 0.0063″ Corner Radius ; Carbide ; TiAlN+TiN ; IC1030
| Cutting Width (CW) | 0.061″ | Max. Grooving Feed (fg(max)) | 0.0031 ″/rev |
| Corner Radius (RE) | 0.0063″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Insert Length (INSL) | 0.803″ | Chip Breaker Type | B |
| Cutting Depth Maximum (CDX) | 0.709″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC1030 | Cutting Edge Angle Major Right Hand (PSIRR) | 8 Degrees |
| Application | | Parting | | Insert Width (W1) | 0.048″ |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | Lead angled type, recommended for soft & ductile materials such as 100Cr6 (specifically for the bearing industry), intended for low to medium feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
3.2
