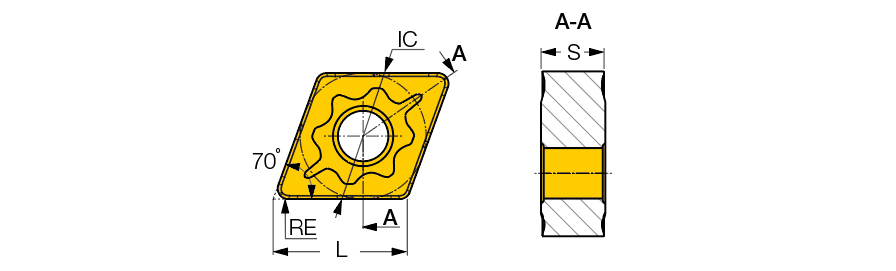

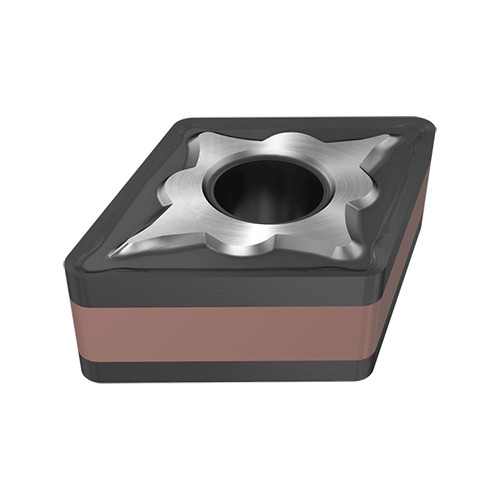

XNMG 331-M3M IC706
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 70° Diamond 93° Approach | | Min D.O.C. | 0.02″ |
| Insert Style | XNMG | Depth of Cut Maximum (APMX) | 0.118″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Insert Size | 331 | Max. Turning Feed (ft(max)) | 0.01574 ″/rev |
| Cutting Edge Length (L) | 0.399″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | M3M |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Grade | IC706 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ |
Product Features
| Family Description | Double-Sided 70° Rhombic Inserts for Machining Stainless and Low Carbon Steel | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
7.1
