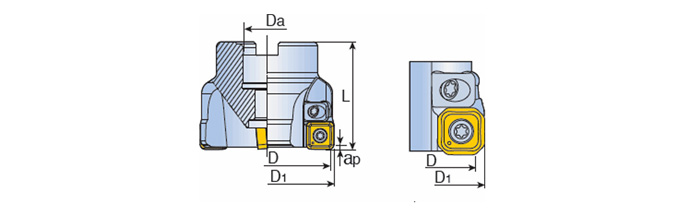

TFM90SNS 20160-40R-12
Indexable Face Mill; 160 mm Dia. × 110 mm Shank Dia. × 63 mm OAL × 1 mm LOC ; 20 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 160 mm | Master Insert Identification (MIID) | C2Q-SN12 |
| Cutting Diameter (DC) | 153.35 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 160 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 20 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1 mm | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 110 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.48″ | Tool Type | 90° Facemills |
| Arbor Style | C |
Product Features
| Family Description | CHASE2QUAD Finish Mill with super finishing all adjustable type | Country of Origin | S.Korea |
Shipping Info
Package Weight
10.923
