TG2G-30R01

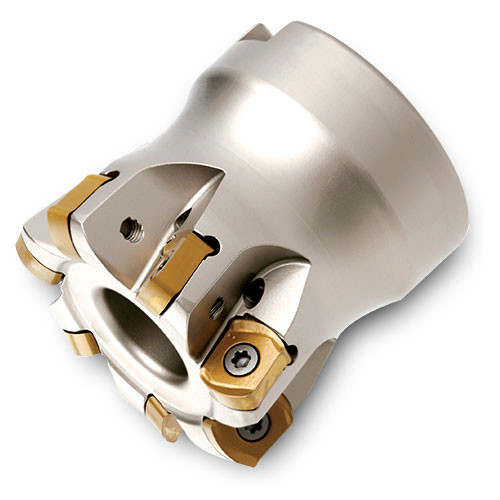

Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.06″ LOC ; 7 Inserts
| Cutting Diameter (DC/DCX) | 3″ | Hub Diameter (DHUB) | 2.48″ |
| Cutting Diameter (DC) | 2.566″ | Arbor Style | A |
| Cutting Diameter Maximum (DCX) | 3″ | Ramping Angle Maximum (RMPX) | 0.6 Degrees |
| Cutting Item Count (CICT) | 7 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 0.06″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
Product Features
| Family Description | Three different insert edge preparations provide application flexibility Excellent hi-feed performance & economy! | Country of Origin | USA |
