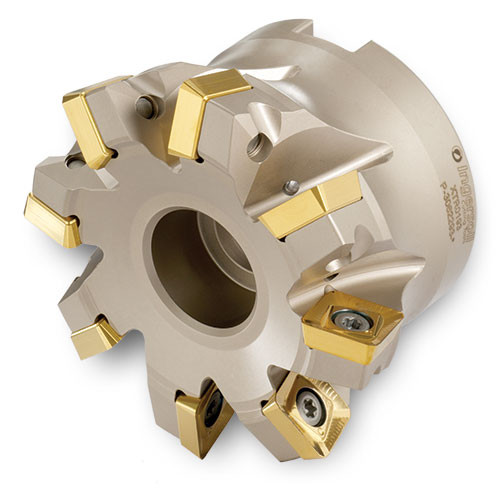

5G6M080R00
Indexable Face Mill; 3.1496″ Dia. × 1.063″ Shank Dia. × 2.165″ OAL × 0.147″ LOC ; 5 Inserts ; 12 Degrees
| Cutting Diameter (DC/DCX) | 3.1496″ | Arbor Style | A |
| Cutting Diameter (DC) | 1.913″ | Ramping Angle Maximum (RMPX) | 4 Degrees |
| Cutting Diameter Maximum (DCX) | 3.1496″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.147″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1.063″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.165″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | 12° Hi-feed rougher Seven different insert edge preparations provide application flexibility Extremely free cutting! Excellent Hi-Feed performance & economy! | Country of Origin | Germany |
Shipping Info
Package Weight
2.227
