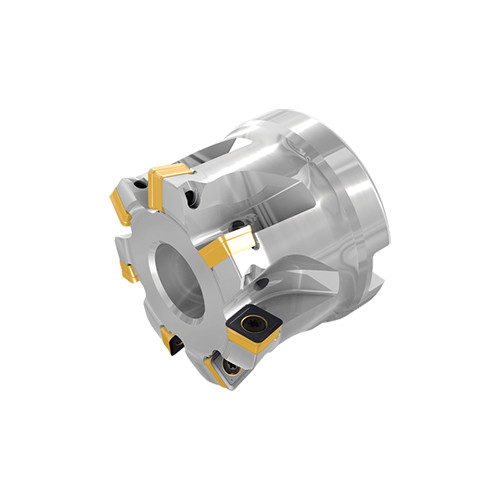

FFQ4 D52-07-22-09
Indexable Face Mill; 52 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 1.2 mm LOC ; 7 Inserts ; 12 Degrees

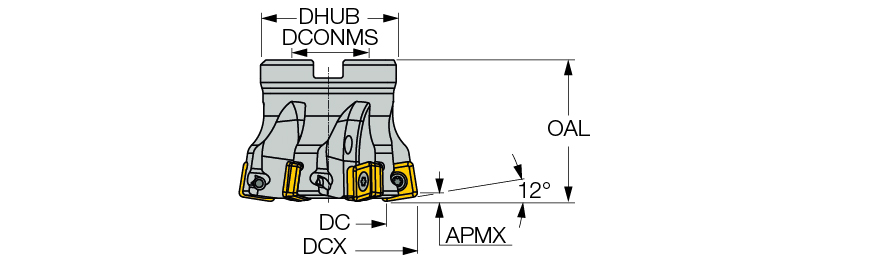

| Cutting Diameter (DC/DCX) | 52 mm | Arbor Style | A |
| Cutting Diameter (DC) | 37.7 mm | Master Insert Identification (MIID) | FFQ4 SOMT 090412T |
| Cutting Diameter Maximum (DCX) | 52 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 1.2 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 48 mm | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
Product Features
| Family Description | Fast feed face mills carrying single-sided square Inserts with 4 cutting edges | Country of Origin | Israel |
| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT 2.4mm, for insert SOMW 3.0mm When mounting insert SOMW, APMX=1.0mm For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info |
Shipping Info
Package Weight
1.038
