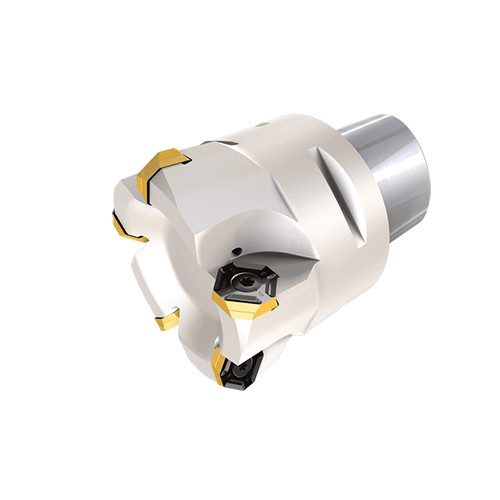

IQ845 FSY D063-05-C6-R07
Indexable Face Mill; 2.85″ Dia. × 2.48″ Shank Dia. × 0.181″ LOC ; 5 Inserts ; 0 Degrees

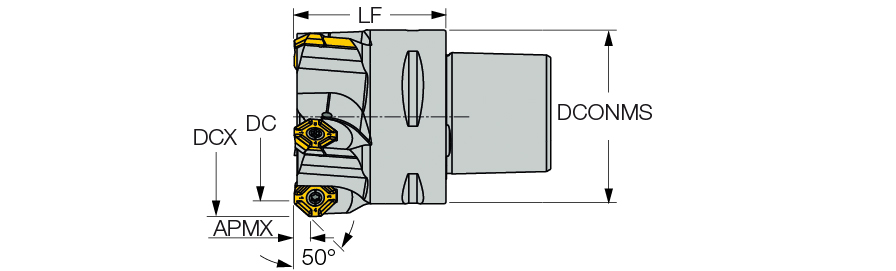

| Cutting Diameter (DC/DCX) | 2.85″ | Usable Length (LU) | 0″ |
| Cutting Diameter (DC) | 2.48″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 2.85″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Application | | Facing | Slanted Shoulder & Chamfer | |
| Depth of Cut Maximum (APMX) | 0.181″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 0 Degrees |
| Overall Length (OAL) | 3.661″ | Tool Type | 45° Facemills |
| Master Insert Identification (MIID) | IQ845 SYHU 07 | Connection Code Machine Side (CCMS) | CAMFIX |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | 50° face mills with CAMFIX (ISO 26623-1 standard) tapered shanks, carrying screw clamped square Inserts with 8 cutting edges. Feature very rigid dove tail clamping and positive pocket orientation. | Country of Origin | Israel |
Shipping Info
Package Weight
3.161
