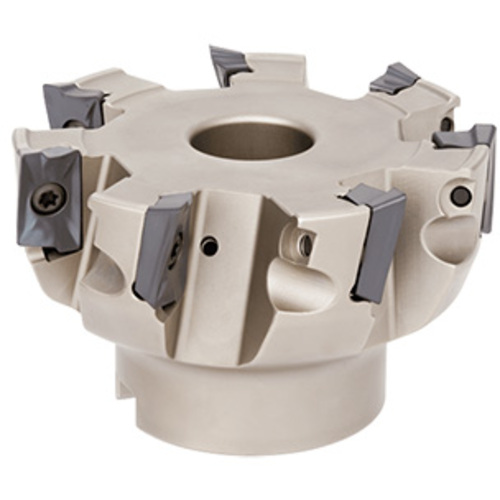

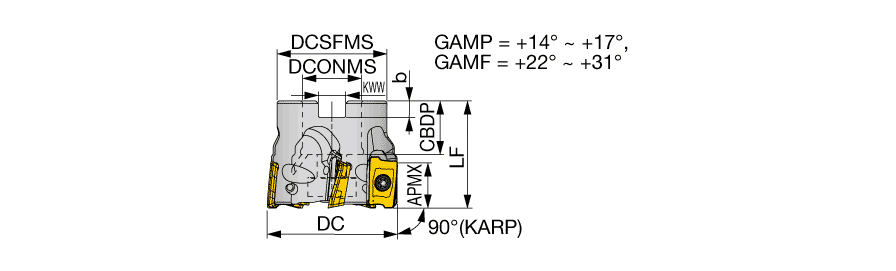

TPO18R080M25.4-07
Indexable Face Mill; 80 mm Dia. × 25.4 mm Shank Dia. × 50 mm OAL × 16.7 mm LOC ; 7 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 80 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 80 mm | Weight of Item (WT) | 0.8 Kg |
| Cutting Diameter Maximum (DCX) | 80 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 16.7 mm | Application | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Functional Length (LF) | 50 mm |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90 Facemills |
| Master Insert Identification (MIID) | AOMT180508PDPR-MJ |
Product Features
| Family Description | High precision shoulder square milling cutter with AOMT/AOGT18 inserts | Country of Origin | USA |
| Remarks | The DC in the table show the lengths when MJ chipbreaker is used. When AJ chipbreaker is used, the diameter is equal to the DC + 0.2 mm. |
Shipping Info
Package Weight
2.179
