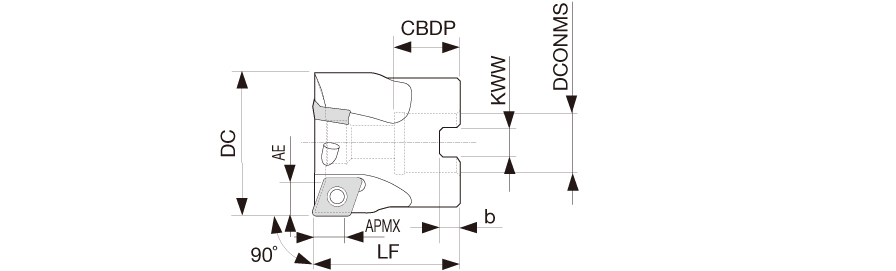

TSD10050R
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 9 mm LOC ; 3 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 50 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 50 mm | Weight of Item (WT) | 0.3 Kg |
| Cutting Diameter Maximum (DCX) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 9 mm | Application | | Hole Enlarging | Plunging | Pocket Milling | Ramping | Shoulder Milling | Side Milling | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Functional Length (LF) | 40 mm |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90 Facemills |
| Master Insert Identification (MIID) | GDMT10H3PDPR-MJ |
Product Features
| Family Description | Multi purpose square mills | Country of Origin | Japan |
Shipping Info
Package Weight
1.083
