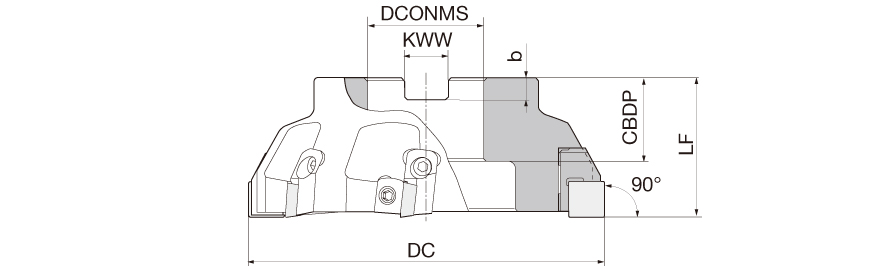

TPP16200RI
Indexable Face Mill; 200 mm Dia. × 47.625 mm Shank Dia. × 2″ OAL × 12 mm LOC ; 10 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 200 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 200 mm | Weight of Item (WT) | 6.9 Kg |
| Cutting Item Count (CICT) | 10 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 47.625 mm | Application | | Shoulder Milling | |
| Overall Length (OAL) | 2″ | Measurement Type | Metric |
| Hub Diameter (DHUB) | 2.48″ | Functional Length (LF) | 63 mm |
| Arbor Style | A | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Master Insert Identification (MIID) | SPMR1605... | Tool Type | 90 Facemills |
Product Features
| Family Description | Square shoulder endmills with wedge clamped SPMR16 inserts in large depth of cut. | Country of Origin | Japan |
Shipping Info
Package Weight
16.295
