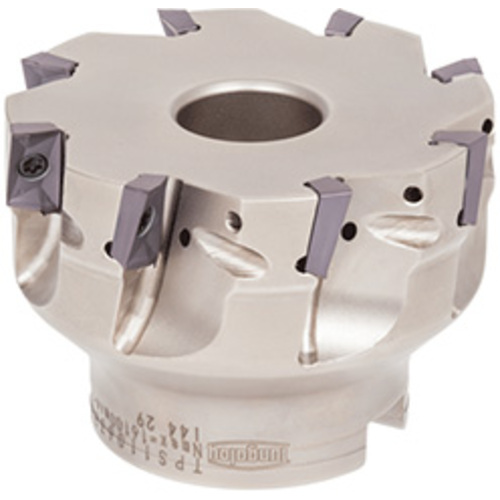

TPS11063RB
Indexable Face Mill; 63mm Dia. × 22mm Shank Dia. × 40mm OAL × 10.6mm LOC ; 8 Inserts ; 90 Degrees

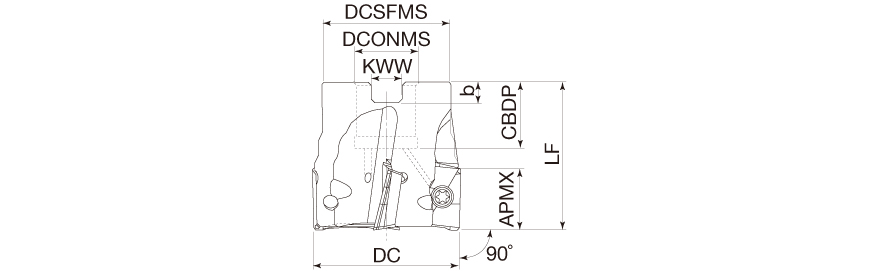

| Cutting Diameter (DC/DCX) | 63mm | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 63mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 10.6mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22mm | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 40mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90 Degrees Facemills |
Product Features
| Family Description | High precision shoulder square milling cutters with ASMT/ASGT11 inserts | Country of Origin | Japan |
| Remarks | When using inserts with corner radius re >= 2.0 mm, standard cutter bodies have to be modified "R". |
Shipping Info
Package Weight
1.72
