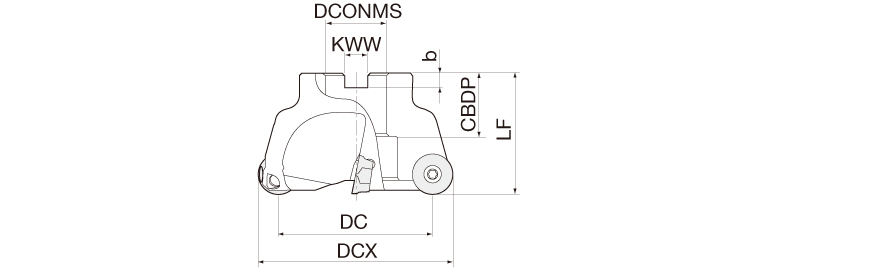

TRD12050R-E
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 2″ OAL × 6 mm LOC ; 4 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 50 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 38 mm | Weight of Item (WT) | 0.3 Kg |
| Cutting Diameter Maximum (DCX) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6 mm | Application | | Face Milling | Hole Enlarging | Pocket Milling | Profiling | Ramping | Shoulder Milling With Radius | Slot Milling With Radius | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 2″ | Functional Length (LF) | 40 mm |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | Round corner cutters |
| Master Insert Identification (MIID) | RDMT1204ZDPN-MJ |
Product Features
| Family Description | Face mills with button insert of 8mm or 6mm radius | Country of Origin | Japan |
Shipping Info
Package Weight
0.948
