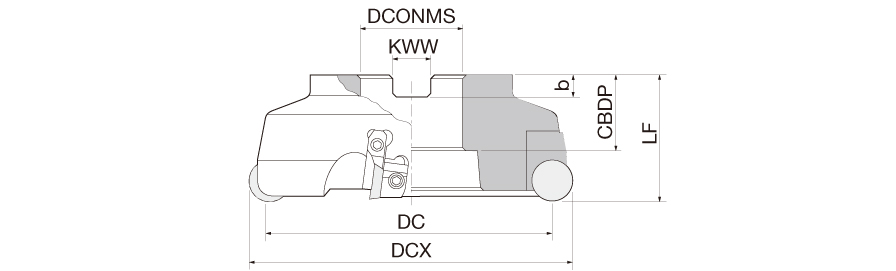

TRD6003R
Indexable Face Mill; 80 mm Dia. × 25.4 mm Shank Dia. × 63 mm OAL × 10 mm LOC ; 4 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 80 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 60 mm | Weight of Item (WT) | 1.2 Kg |
| Cutting Diameter Maximum (DCX) | 80 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 10 mm | Application | | Face Milling | Shoulder Milling With Radius | |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Functional Length (LF) | 63 mm |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | Round corner cutters |
| Master Insert Identification (MIID) | RDKN2004TN |
Product Features
| Family Description | Face mill with 20mm button insert | Country of Origin | Japan |
