DG5P-25R01

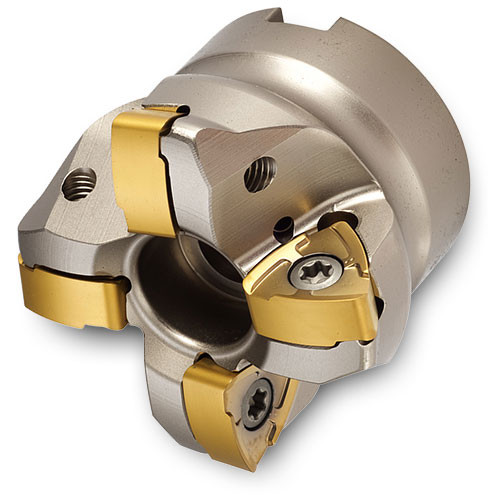

Indexable Face Mill; 2-1/2″ Dia. × 3/4″ Shank Dia. × 1.57″ OAL × 0.079″ LOC ; 5 Inserts
| Cutting Diameter (DC/DCX) | 2-1/2″ | Hub Diameter (DHUB) | 2.48″ |
| Cutting Diameter (DC) | 1.723″ | Arbor Style | A |
| Cutting Diameter Maximum (DCX) | 2-1/2″ | Ramping Angle Maximum (RMPX) | 0.6 Degrees |
| Cutting Item Count (CICT) | 5 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 0.079″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | |
| Overall Length (OAL) | 1.57″ | Measurement Type | Inch |
Product Features
| Family Description | 2 mm (.078″) Max. depth of cut Three different insert edge preparations provide application flexibility Excellent hi-feed performance & economy! | Country of Origin | USA |
Shipping Info
Package Weight
0.001
