5J5P-25R01-R

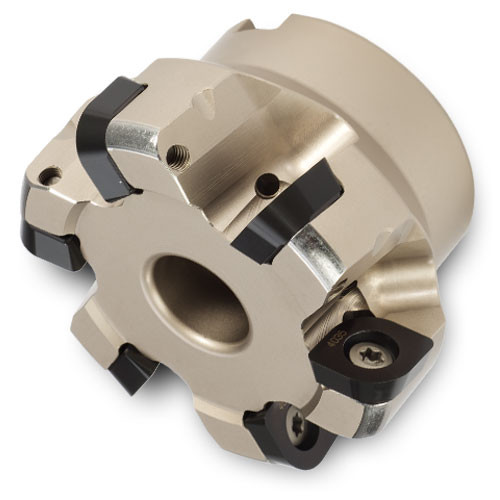

Indexable Face Mill; 2-1/2″ Dia. × 3/4″ Shank Dia. × 1.57″ OAL × 0.45″ Max Depth ; 6 Inserts
| Cutting Diameter (DC/DCX) | 2-1/2″ | Arbor Style | A |
| Cutting Diameter (DC) | 2-1/2″ | Ramping Angle Maximum (RMPX) | 2 Degrees |
| Cutting Item Count (CICT) | 6 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 0.45″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 1.57″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Hub Diameter (DHUB) | 2.48″ | Measurement Type | Inch |
Product Features
| Family Description | Finishes as good as 40 Ra Insert Corner: .250″ | Country of Origin | Israel |
Shipping Info
Package Weight
0.002
