5J5P-40R01

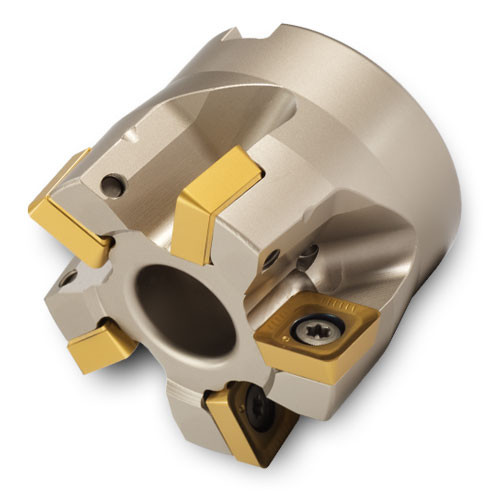

Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2-3/8″ OAL × 0.45″ LOC ; 10 Inserts
| Cutting Diameter (DC/DCX) | 4″ | Arbor Style | A |
| Cutting Diameter (DC) | 4″ | Ramping Angle Maximum (RMPX) | 1 Degrees |
| Cutting Item Count (CICT) | 10 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 0.45″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2-3/8″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Hub Diameter (DHUB) | 2.48″ | Measurement Type | Inch |
Product Features
| Family Description | Insert corners: .031, .047, .062, .093, .125″ | Country of Origin | USA |
Shipping Info
Package Weight
0.01
