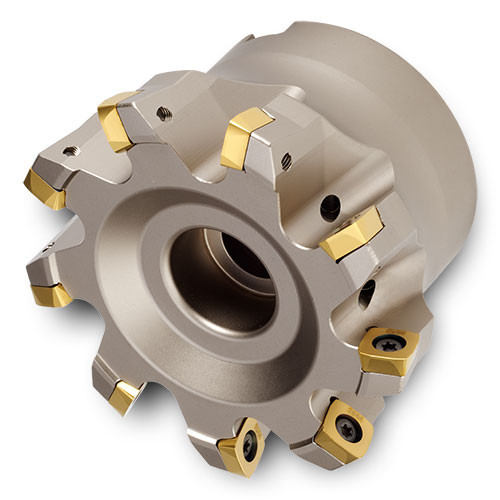

5G5F-20R01
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1.97″ OAL × 0.06″ LOC ; 7 Inserts ; 12 Degrees
| Cutting Diameter (DC/DCX) | 2″ | Arbor Style | A |
| Cutting Diameter (DC) | 1.521″ | Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Cutting Diameter Maximum (DCX) | 2″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.06″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.97″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | 12° Hi-feed rougher Multiple insert styles for application flexibility .060″ Insert wiper, face and O.D. Extremely free cutting! Excellent performance & economy! | Country of Origin | USA |
Shipping Info
Package Weight
0.002
