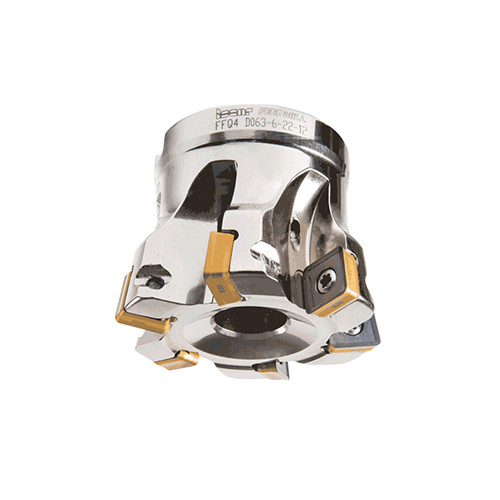

FFQ4 D2.5-6-1.00-12
Indexable Face Mill; 2-1/2″ Dia. × 1″ Shank Dia. × 2″ OAL × 0.059″ LOC ; 6 Inserts ; 9 Degrees

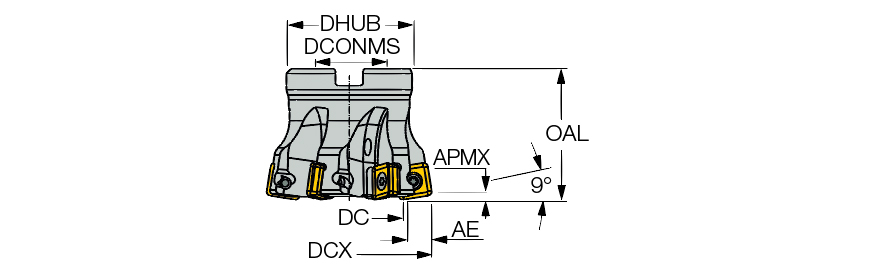

| Cutting Diameter (DC/DCX) | 2-1/2″ | Master Insert Identification (MIID) | FFQ4 SOMT 120516HP |
| Cutting Diameter (DC) | 1.636″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 2-1/2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.059″ | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 9 Degrees |
| Hub Diameter (DHUB) | 2.252″ | Tool Type | Fast Feed Face mill |
| Arbor Style | A |
Product Features
| Family Description | Fast feed face mills carrying single-sided Inserts with 4 cutting edges. | Country of Origin | Israel |

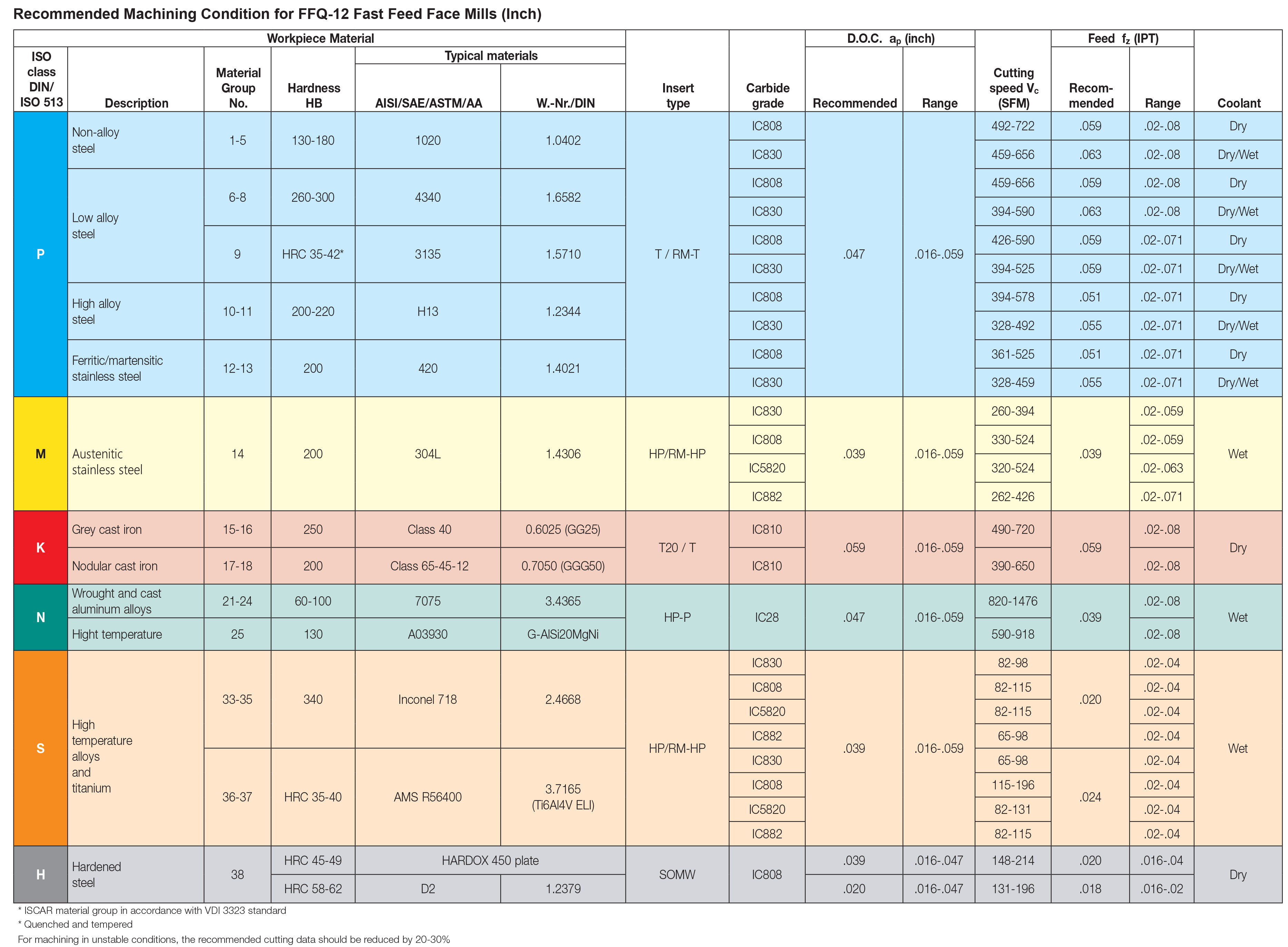

| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT .118 for insert SOMW .157 When mounting insert SOMW, APMX=.047 For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info |
Shipping Info
Package Length
2.37500
Package Width
2.37500
Package Height
2.37500
Package Weight
1.7
