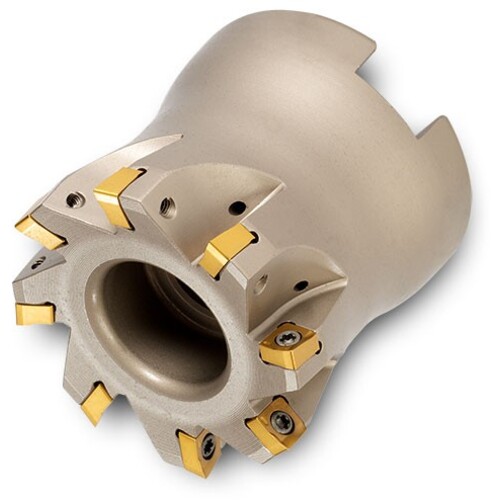

2P-TF90-840-16R-05
Indexable Face Mill; 40 mm Dia. × 0 mm Shank Dia. × 40 mm OAL × 4.7 mm LOC ; 8 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | CMP-2P05 |
| Cutting Diameter (DC) | 40 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 4.7 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0 mm | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | CHASEMILL POWER Facemill cutter for 2PKT 05. | Country of Origin | S.Korea |
| Remarks | Mounting bolt with coolant through hole is available on request. (ordering example: SH M8X1.25X25-C) |
Shipping Info
Package Weight
0.606
