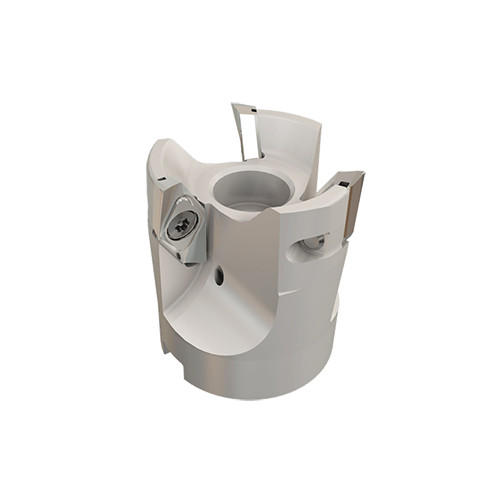

HSM90S FAL-D050-4-22-14
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 57 mm OAL × 13.5 mm LOC ; 4 Inserts ; 90 Degrees

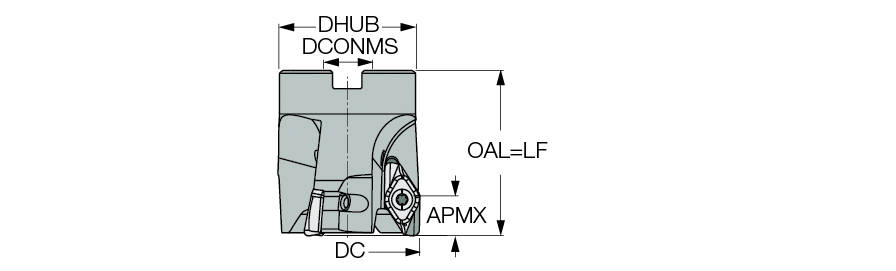

| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | HSM90S APCR 140508R-P |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 13.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 57 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 47 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills for Al. & HTA |
Product Features
| Family Description | 90° face mills carrying super positive and polished rake inserts for machining aluminum at high rotation speeds. A special pocket design improves its resistance to centrifugal forces. | Country of Origin | Israel |
| Remarks | Important: When machining at very high cutting speeds it is recommended to replace the screw when replacing the insert Insert tightening torque: 6 (Nxm) |
Shipping Info
Package Weight
1.354
