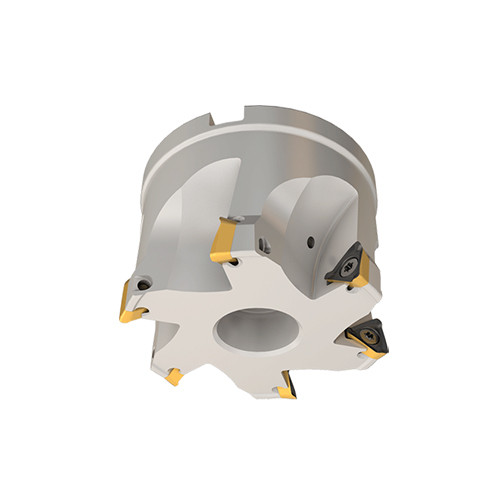

HM390 FTP D080-11-27-10
Indexable Face Mill; 80 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 8 mm LOC ; 11 Inserts ; 90 Degrees

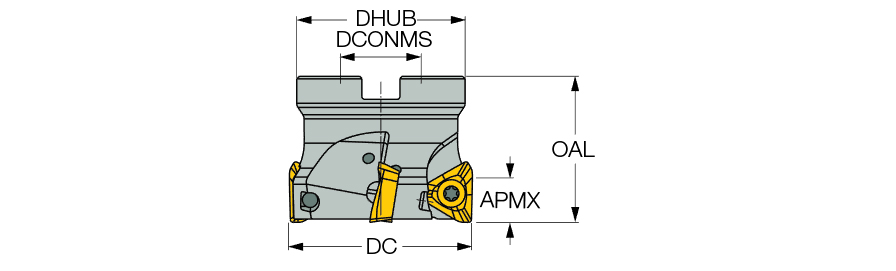

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | HM390 TPKT 100304PDR |
| Cutting Diameter (DC) | 80 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 11 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 8 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 60 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges | Country of Origin | Israel |
| Remarks | When installing inserts with a corner radius greater than 2 mm, modify the tool body by rounding the corner of the insert pocket, as detailed in More Info |
Shipping Info
Package Weight
2.557
