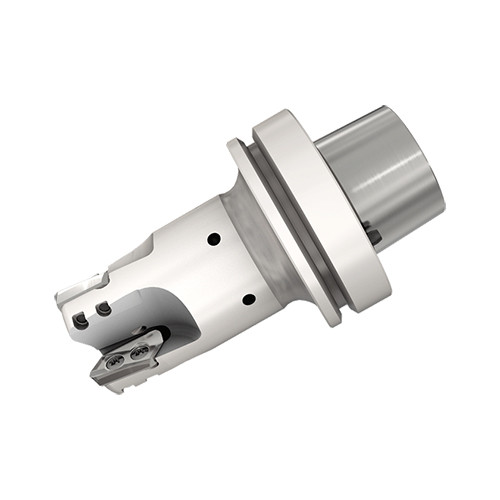

HSM90S EALD2-2-HSK80FM-22
Indexable Face Mill; 2″ Dia. × 3.15″ Shank Dia. × 5.905″ OAL × 0.866″ LOC ; 2 Inserts ; 90 Degrees

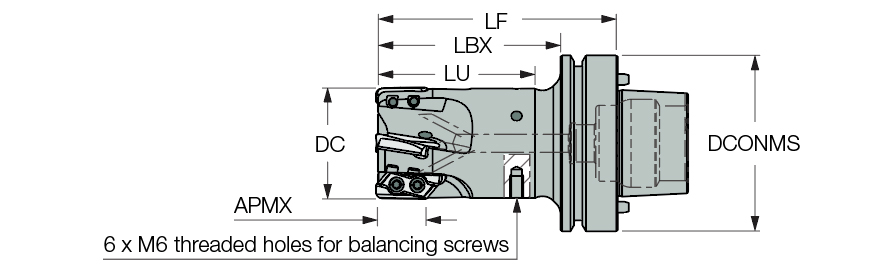

| Cutting Diameter (DC/DCX) | 2″ | Usable Length (LU) | 2.85″ |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.866″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3.15″ | Measurement Type | Inch |
| Overall Length (OAL) | 5.905″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Master Insert Identification (MIID) | HSM90S APCR 220708R | Shank Type | HSK80FM |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | 90° endmills with integral HSK80FM adaptation (for Makino machines) carrying super positive and polished rake inserts for machining aluminum at high rotation speeds. A special pocket design improves its resistance to centrifugal forces | Country of Origin | Israel |
| Remarks | When machining at very high cutting speeds (RPM>15000) and replacing the insert, it is also recommended to replace the screw A cooling tube must be used with all internal coolant HSK spindles (to be order separately) Kit balancing screws to be order separately For adaptation, click on More Info |
