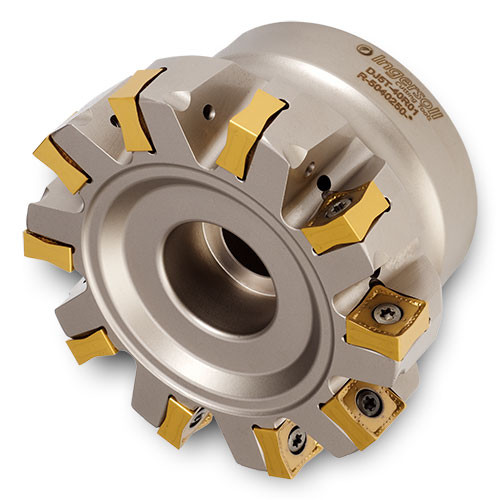

DJ5T-40R01
Indexable Face Mill; 4.02″ Dia. × 1-1/2″ Shank Dia. × 2-3/8″ OAL × 0.47″ LOC ; 10 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 4.02″ | Arbor Style | A |
| Cutting Diameter (DC) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 4.02″ | Body Material | Steel |
| Cutting Item Count (CICT) | 10 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.47″ | Application | | Facing | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-3/8″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | 40-80 Ra surface finishes when engaging the wiper (WEP) Carbide and SiN insert options Insert corners: .015, .031, .047, .062″ | Country of Origin | Usa |
Shipping Info
Package Weight
0.009
