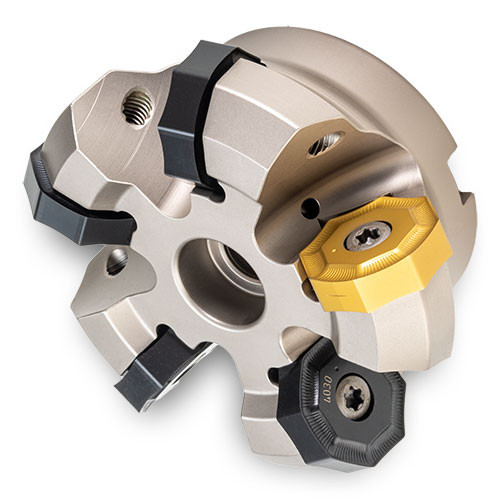

OP6N-40R01
Indexable Face Mill; 4.54″ Dia. × 1-1/2″ Shank Dia. × 2-3/8″ OAL × 0.2″ LOC ; 7 Inserts ; 42 Degrees
| Cutting Diameter (DC/DCX) | 4.54″ | Arbor Style | A |
| Cutting Diameter (DC) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 4.54″ | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.2″ | Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-3/8″ | Tool Cutting Edge Angle (KAPR) | 42 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | Finishes as good as 20 Ra when using wiper in one pocket Carbide & SiN options Great price-per-edge economy! | Country of Origin | Germany |
Shipping Info
Package Weight
6.173
