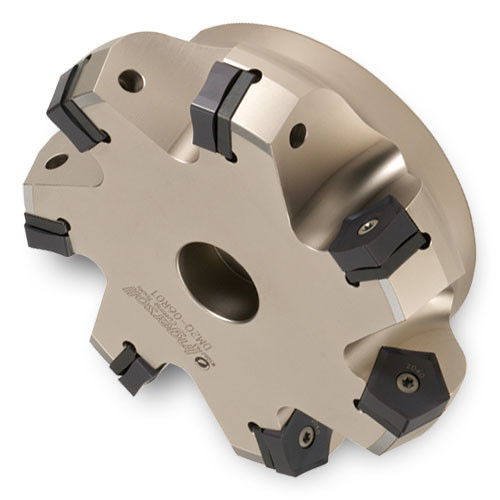

DM2Q-08R01
Indexable Face Mill; 8.44″ Dia. × 2-1/2″ Shank Dia. × 2-3/8″ OAL × 0.47″ Max Depth ; 8 Inserts ; 70 Degrees
| Cutting Diameter (DC/DCX) | 8.44″ | Arbor Style | A |
| Cutting Diameter (DC) | 8″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 8.44″ | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.47″ | Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 2-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-3/8″ | Tool Cutting Edge Angle (KAPR) | 70 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | Pocket protection with screw-held seat 32-63 Ra surface finishes when engaging the wiper (WEP) Great Price-per-Edge economy! | Country of Origin | Germany |
Shipping Info
Package Weight
15.950
