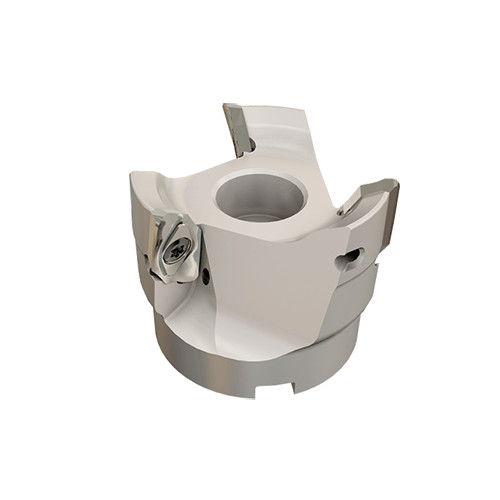

HM90 FAL-D4.00-1.50-16
Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2-1/4″ OAL × 0.61″ LOC ; 4 Inserts ; 90 Degrees

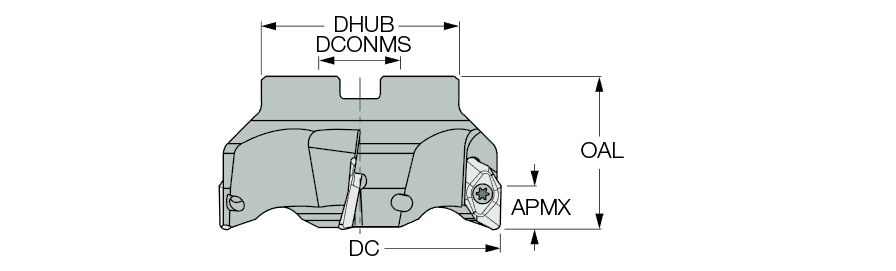

| Cutting Diameter (DC/DCX) | 4″ | Master Insert Identification (MIID) | HM90 APCR 160520R-P |
| Cutting Diameter (DC) | 4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.61″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 2-1/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 3-1/2″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills for Al. & HTA |
Product Features
| Family Description | Face mills carrying HM90 APCR 1605... inserts for machining aluminum | Country of Origin | Israel |
| Remarks | For inserts with a corner radius larger than .126, tools must be modified by rounding the corners of the tool body according to the formula: R body's corner = R insert + .02 Corners larger than .177 to be used only on BR tools For adaptation, click on More Info |
Shipping Info
Package Weight
4.409
