F90SD D5.00-1.5-12
Indexable Face Mill; 5″ Dia. × 1-1/2″ Shank Dia. × 2.38″ OAL × 0.465″ LOC ; 9 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 5″ | Master Insert Identification (MIID) | SDMT 1205 |
| Cutting Diameter (DC) | 5″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 9 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.465″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 2.38″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 3.27″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills Carrying S/QDM# 12... inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
6.834
Related Documentation

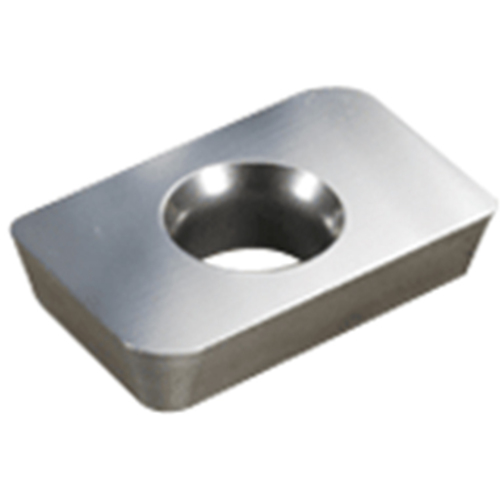

Cutter dia 3.0-6.0″ with 1205..inserts - use TSD 1205N seats. Optional: 12T3..inserts with TSD 12T3N seats.
