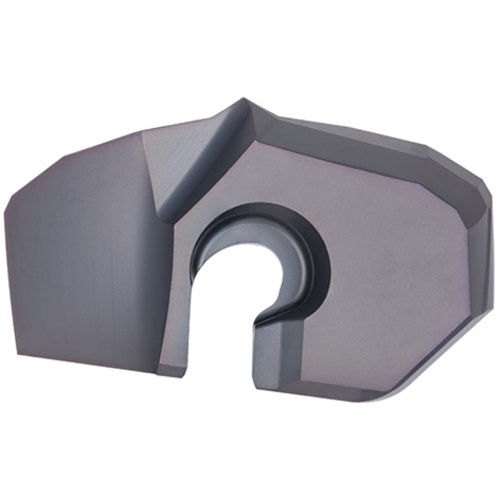

SMC0799 AH9130
Drill Head; 0.7992″ Dia. ; AH9130 ; Carbide ; TiAlSiCrN

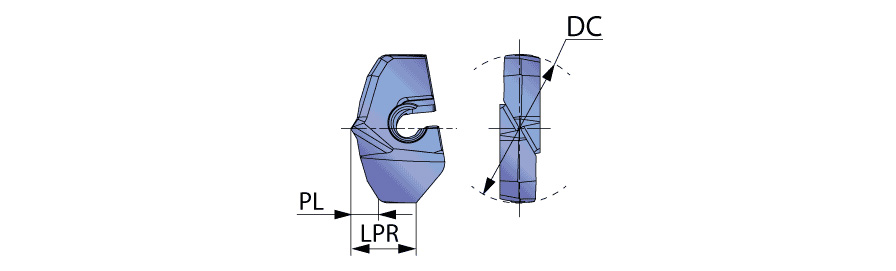

| Cutting Diameter (DC) | 0.7992″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | General Drilling | | Point Length (PL) | 0.214″ |
| Grade | AH9130 | Cutting Diameter Maximum (DCX) | 0.9567″ |
| Tool Type | DRILL - L/D = 3 | Cutting Diameter Minimum (DCN) | 0.9567″ |
| Protruding Length (LPR) | 0.406″ | Coating | TiAlSiCrN |
| Insert Seat Size Code (SSC) | 20 | Body Material | Carbide |
Product Features
| Family Description | DrillForceMeister SMC Drill head for indexable head drills. High precision drilling. | Country of Origin | Japan |
| Remarks | Head diameter (DC): 26.0 33.0 / Head diameter tolerance: +0.025 / 0 |
Shipping Info
Package Weight
0
