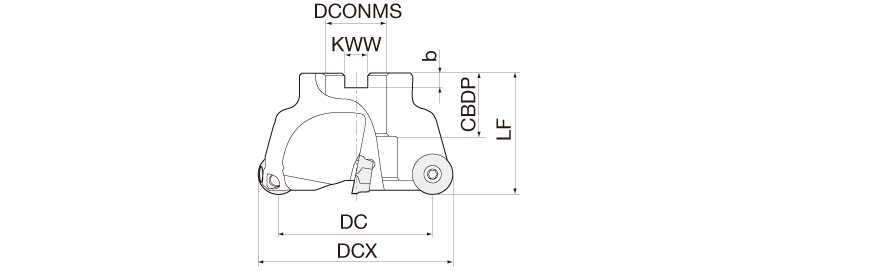

TRD16125RU
Indexable Face Mill; 4.92″ Dia. × 1-1/2″ Shank Dia. × 2″ OAL × 0.315″ LOC ; 6 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 4.92″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 4-1/4″ | Weight of Item (WT) | 5.3 lb. |
| Cutting Diameter Maximum (DCX) | 4.92″ | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.315″ | Application | | Face Milling | Hole Enlarging | Pocket Milling | Profiling | Ramping | Shoulder Milling With Radius | Slot Milling With Radius | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Functional Length (LF) | 2-1/2″ |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | Round corner cutters |
| Master Insert Identification (MIID) | RDMT1606ZDPN-MJ |
Product Features
| Family Description | Face mills with button insert of 8mm or 6mm radius | Country of Origin | Japan |
Shipping Info
Package Weight
6.13
