FTP D2.0-5-.75-R-LN10

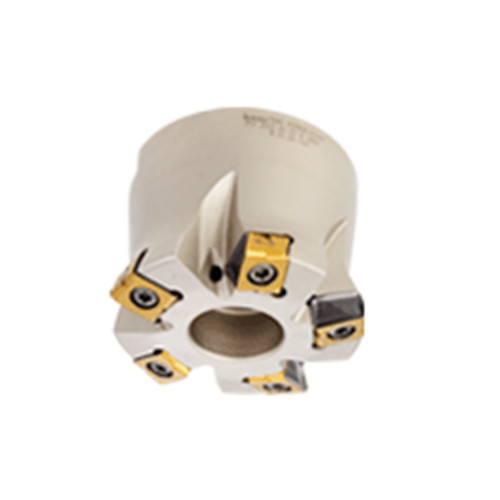

Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1.57″ OAL × 0.071″ LOC ; 5 Inserts ; 13 Degrees

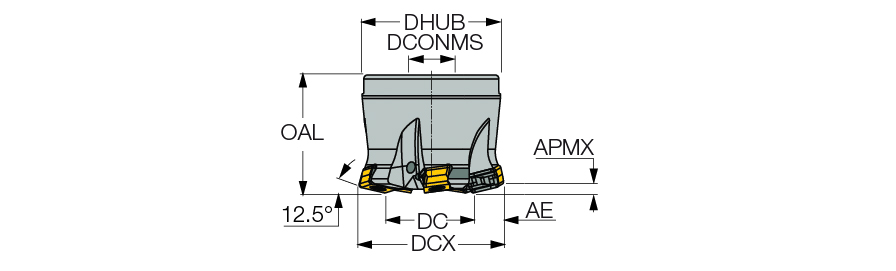

| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | HTP LNAR 1006 FR-P |
| Cutting Diameter (DC) | 1.3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |

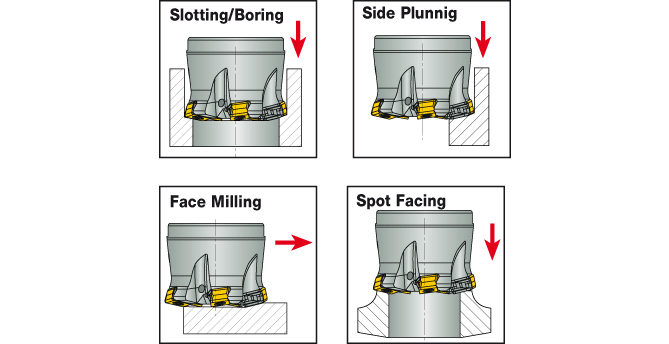

| Depth of Cut Maximum (APMX) | 0.071″ | Application | | Facing | Fast Feed Milling | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.57″ | Tool Cutting Edge Angle (KAPR) | 13 Degrees |
| Hub Diameter (DHUB) | 1.77″ | Tool Type | Plungers cutters |
| Arbor Style | A |
Product Features
| Family Description | HELITANG, fast feed shell mill, carrying tangentially clamped inserts with 4 cutting edges. .118″ maximum face milling D.O.C. and .315″ side plunging capacity. Provide excellent side wall surface finish and a flat bottom. | Country of Origin | Israel |
| Remarks | For application details, click on More Info Radius for programming R=.134 |
Shipping Info
Package Length
4.70700
Package Width
2.79000
Package Height
2.79000
Package Weight
1.432
