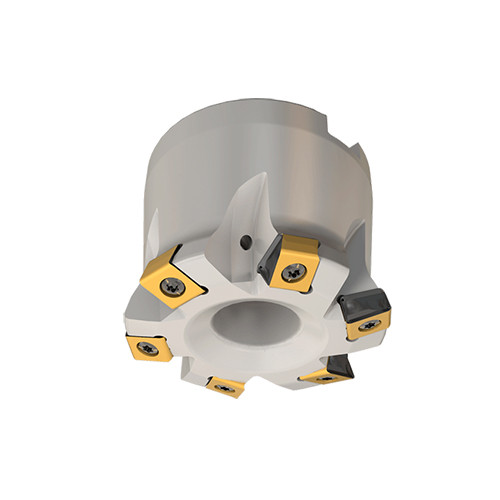

FTP D040-4-16-R-LN10
Indexable Face Mill; 40 mm Dia. × 16 mm Shank Dia. × 40 mm OAL × 1.8 mm LOC ; 4 Inserts ; 13 Degrees

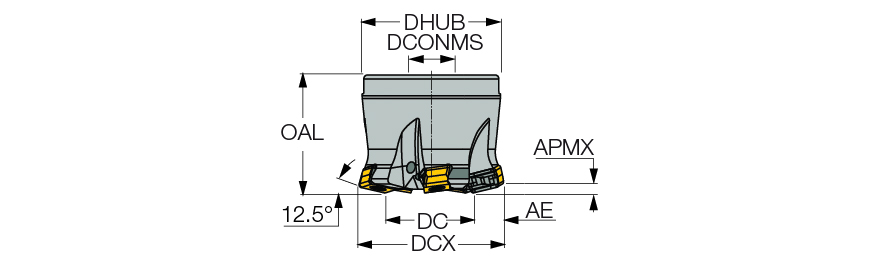

| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | HTP LNAR 1006 FR-P |
| Cutting Diameter (DC) | 22 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 40 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |

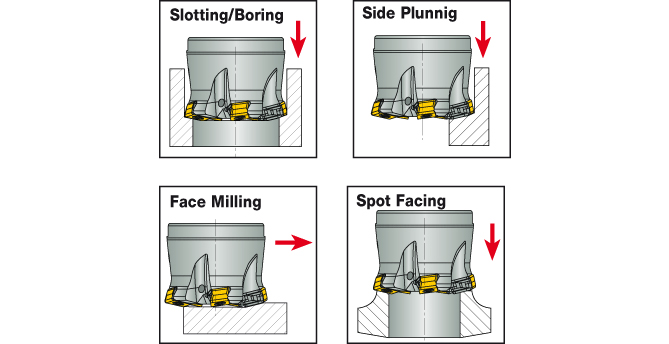

| Depth of Cut Maximum (APMX) | 1.8 mm | Application | | Facing | Fast Feed Milling | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 13 Degrees |
| Hub Diameter (DHUB) | 38 mm | Tool Type | Plungers cutters |
| Arbor Style | A |
Product Features
| Family Description | HELITANG, fast feed shell mill, carrying tangentially clamped inserts with 4 cutting edges. 3 mm maximum face milling D.O.C. and 8 mm side plunging capacity. Provide excellent side wall surface finish and a flat bottom. | Country of Origin | Israel |
| Remarks | For application details, click on More Info Radius for programming R=3.4 mm |
Shipping Info
Package Weight
0.833
