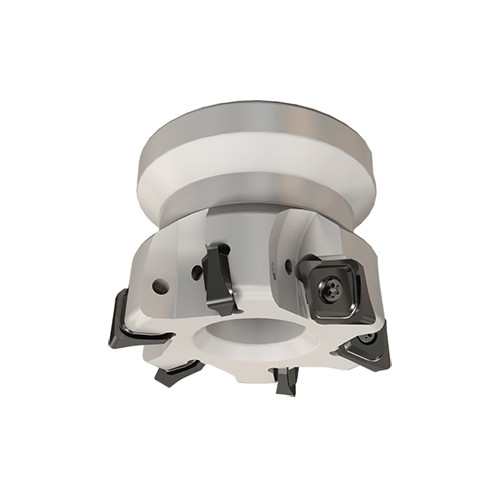

F93CN D80-8-27-R-10

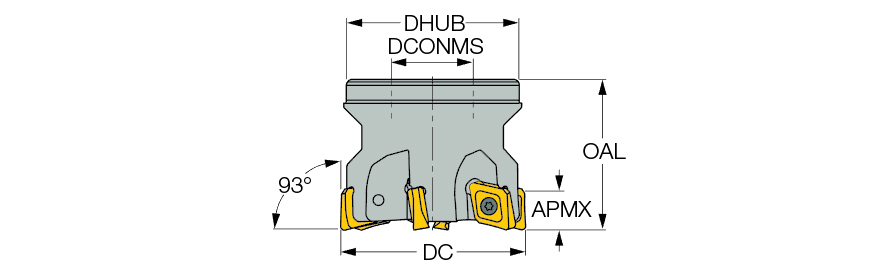

Indexable Face Mill; 80 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 8 mm LOC ; 8 Inserts ; 93 Degrees
| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | ENHT 100430 |
| Cutting Diameter (DC) | 80 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 8 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Application | | Plunging & Recessing | Rampdown | Shouldering | Side Plunging | Undercutting | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 60 mm | Tool Cutting Edge Angle (KAPR) | 93 Degrees |
| Arbor Style | B | Tool Type | Toroidal endmills |
Product Features
| Family Description | 93° face mills carrying toroidal inserts (TORMILL). Used for undercutting, for the finish cut of steep or vertical walls, thin walls, long and unsupported workpieces and parts with non-rigid clamping. | Country of Origin | Israel |
Shipping Info
Package Weight
2.112
