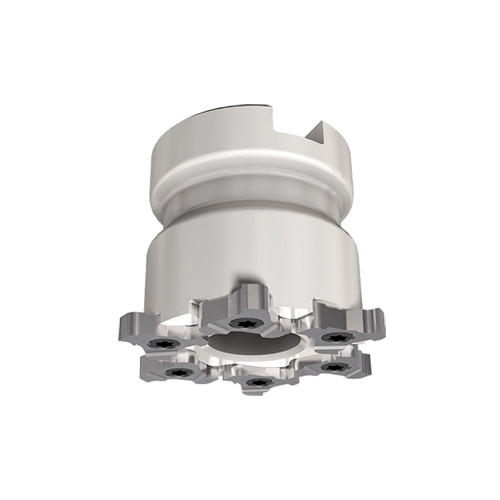

TRIB 50-22SM 6Z
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 39.5 mm OAL ; 6 Inserts ; 90 Degrees

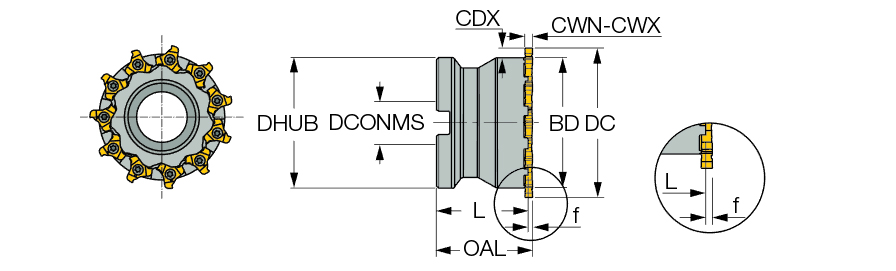

| Cutting Diameter (DC/DCX) | 50 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Bottom Shouldering | Internal Groove Milling | Shouldering | Side Slotting | |
| Overall Length (OAL) | 39.5 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 39.7 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | Double-sided slotting cutters |
| Master Insert Identification (MIID) | TRI 16RK-2.0-0.2 |
Product Features

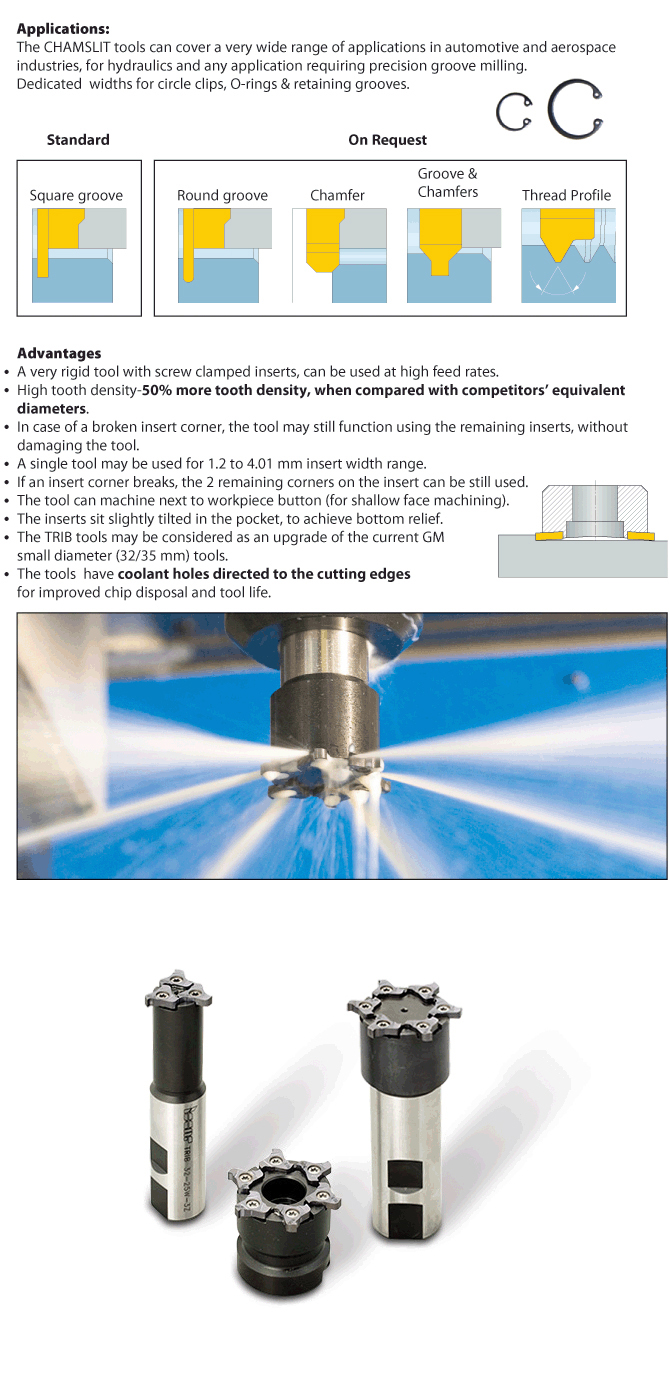

| Family Description | Grooving shell mills with triple-edged precision ground inserts. | Country of Origin | Israel |
| Remarks | CWN,CWX, CDX, f, Refer to insert data For inserts with CW=4.01-6.50 mm, order tools with -B suffix (deeper pockets) for example: TRIB 63-22SM-8Z-B For user guide, click on More Info |
Shipping Info
Package Weight
0.871
