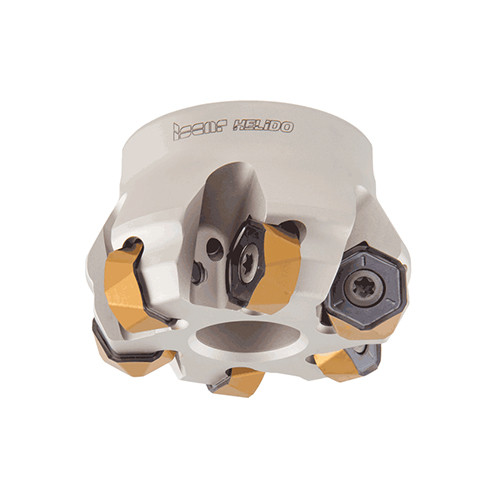

MF FHX D6.00-13-2.00-R06
Indexable Face Mill; 6.09″ Dia. × 2″ Shank Dia. × 2-1/4″ OAL × 0.118″ LOC ; 13 Inserts ; 34 Degrees

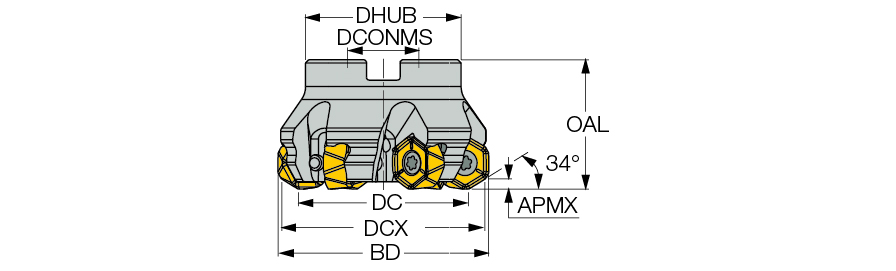

| Cutting Diameter (DC/DCX) | 6.09″ | Master Insert Identification (MIID) | H1200 HXCU 0606-HPR |
| Cutting Diameter (DC) | 5.62″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 6″ | Body Material | Steel |
| Cutting Item Count (CICT) | 13 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.118″ | Application | | Facing | Fast Feed Milling | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/4″ | Tool Cutting Edge Angle (KAPR) | 34 Degrees |
| Hub Diameter (DHUB) | 4″ | Tool Type | 45° Facemills |
| Arbor Style | B |
Product Features
| Family Description | 34° face mills carrying hexagonal inserts with 12 cutting edges | Country of Origin | Israel |
| Remarks | Radius for programming according to D1 diameter is .218 When machining next to shoulders, maximum width of cut should be 0.3xD To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Package Weight
8.719
