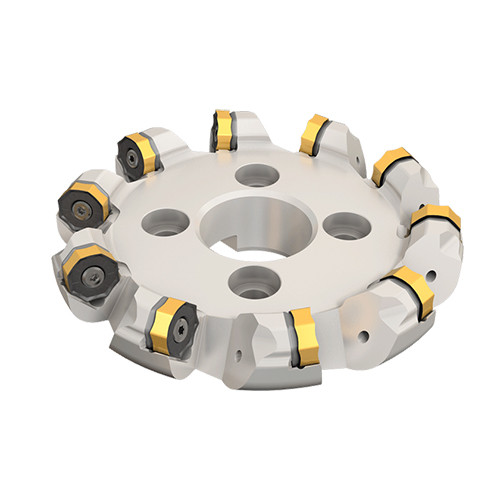

SOF45 D6.0-08-2.00-R26
Indexable Face Mill; 6.96″ Dia. × 2″ Shank Dia. × 2-1/2″ OAL × 0.433″ LOC ; 8 Inserts ; 44 Degrees

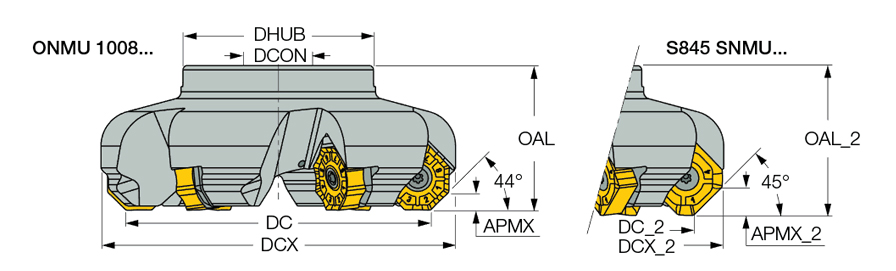

| Cutting Diameter (DC/DCX) | 6.96″ | Master Insert Identification (MIID) | ONMU 100816-N-HL |
| Cutting Diameter (DC) | 6.16″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 6.96″ | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.286″ | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.42″ | Tool Cutting Edge Angle (KAPR) | 44 Degrees |
| Hub Diameter (DHUB) | 3.94″ | Tool Type | 45° Facemills |
| Arbor Style | B |
Product Features
| Family Description | Heavy duty 45° face mills carrying square or octagonal double-sided inserts with 8/16 cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
9.822
