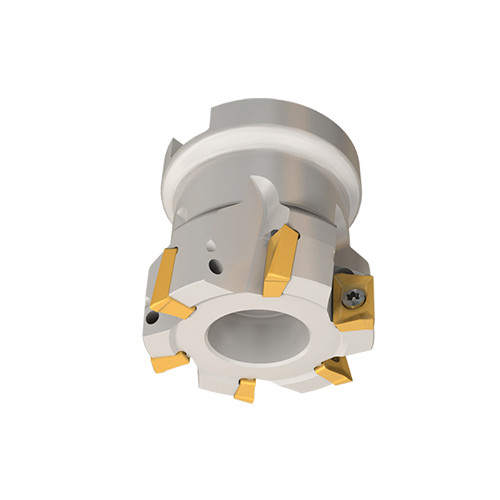

HM90 F90AP D2.50-9-1.00
Indexable Face Mill; 2-1/2″ Dia. × 1″ Shank Dia. × 1.736″ OAL × 0.39″ LOC ; 9 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 2-1/2″ | Master Insert Identification (MIID) | APKT 1003PDR-HM |
| Cutting Diameter (DC) | 2-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 2-1/2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 9 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.39″ | Application | | Counter Boring | Facing | Fast Feed Milling | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-3/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.33″ | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | HELI2000, 90° face mills carrying HM90 APKT 1003... inserts. | Country of Origin | Israel |

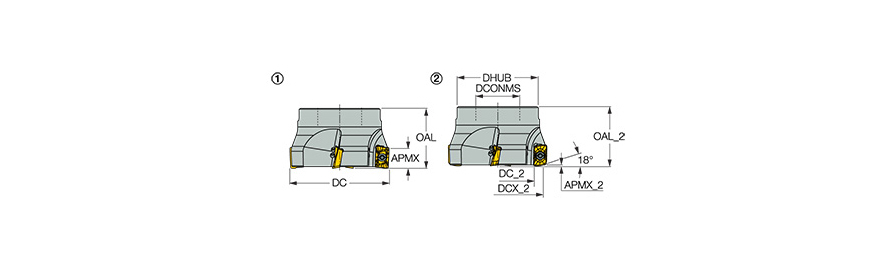

| Remarks | 1- with standard square insert 2- with FF (fast feed) insert For user guide, see pages For adaptation, click on More Info |
Shipping Info
Package Weight
1.825
