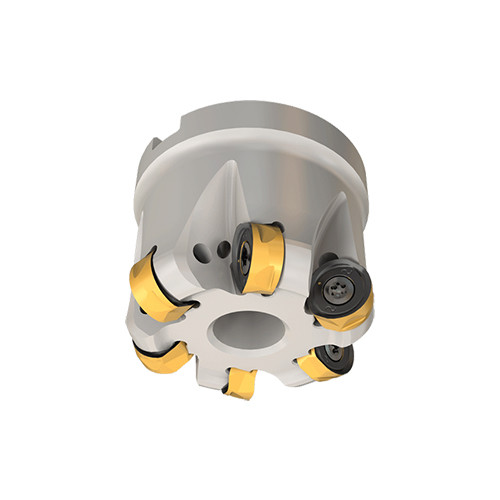

H400 FR D1.50-06-0.50-10
Indexable Face Mill; 1-1/2″ Dia. × 1/2″ Shank Dia. × 1.4″ OAL × 0.295″ LOC ; 6 Inserts

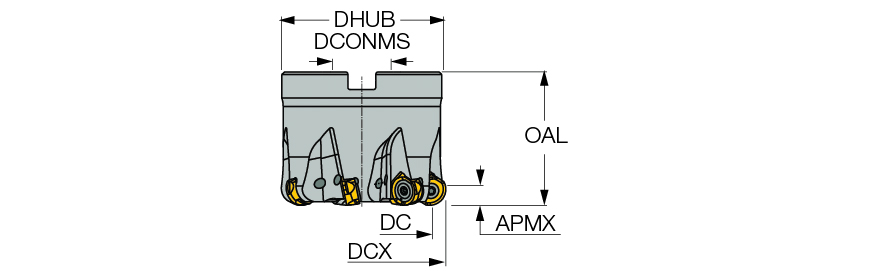

| Cutting Diameter (DC/DCX) | 1-1/2″ | Arbor Style | A |
| Cutting Diameter (DC) | 1.03″ | Master Insert Identification (MIID) | H400 RNHU 1004-ML |
| Cutting Diameter Maximum (DCX) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.295″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Overall Length (OAL) | 1.4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.48″ | Tool Type | Round corner cutters |
Product Features
| Family Description | Face mills carrying double-sided inserts with four .197″ radius cutting edges (HELIDO ROUND H400 LINE). | Country of Origin | Israel |
Shipping Info
Package Weight
0.608
