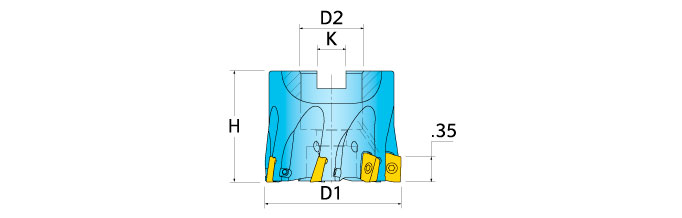

2J1P-20R01
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1.57″ OAL × 0.35″ LOC ; 7 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 2″ | Arbor Style | A |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.35″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Facing | Helical Interpolation | Shouldering | Slotting | |
| Overall Length (OAL) | 1.57″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | Insert radii: .015″, .031″, .062″, .078″, .120″ R | Country of Origin | Germany |
Shipping Info
Package Weight
0.881
