5N6L-30R01

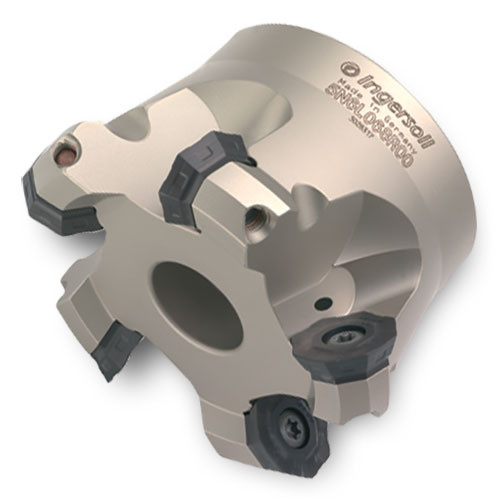

Indexable Face Mill; 3.49″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.46″ LOC ; 5 Inserts ; 45 Degrees
| Cutting Diameter (DC/DCX) | 3.49″ | Arbor Style | A |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 3.49″ | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.46″ | Application | | Chamfering | Facing | Helical Interpolation | Rampdown | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-3/4″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.627
