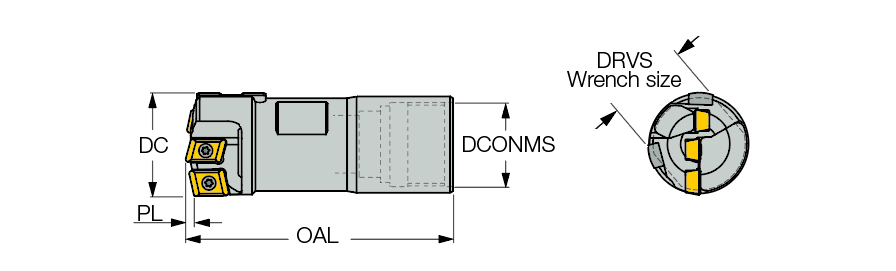

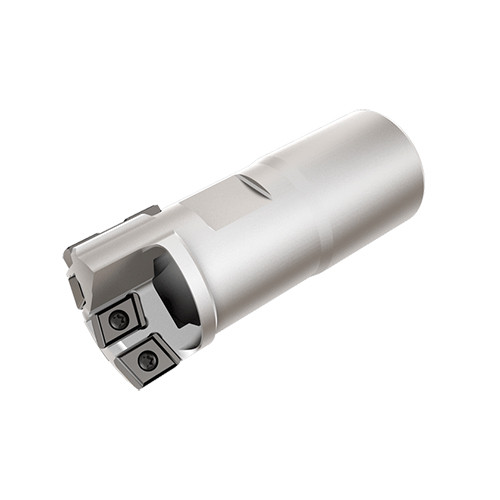

ISD-IF 2.953-3.188-FB
| Application | | Deep Drilling | | Connection Thread Size (Ts) | TS-023 |
| Connection Diameter Machine Side (DCONMS) | 2.559″ | Cutting Diameter Minimum (DCN) | 2.953″ |
| Tool Type | Deep Hole / Gun Drill | Cutting Diameter Maximum (DCX) | 3.188″ |
| Overall Length (OAL) | 5.63″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
Product Features
| Family Description | Deep single tube drills with internal Single-Start Thread Connection. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |

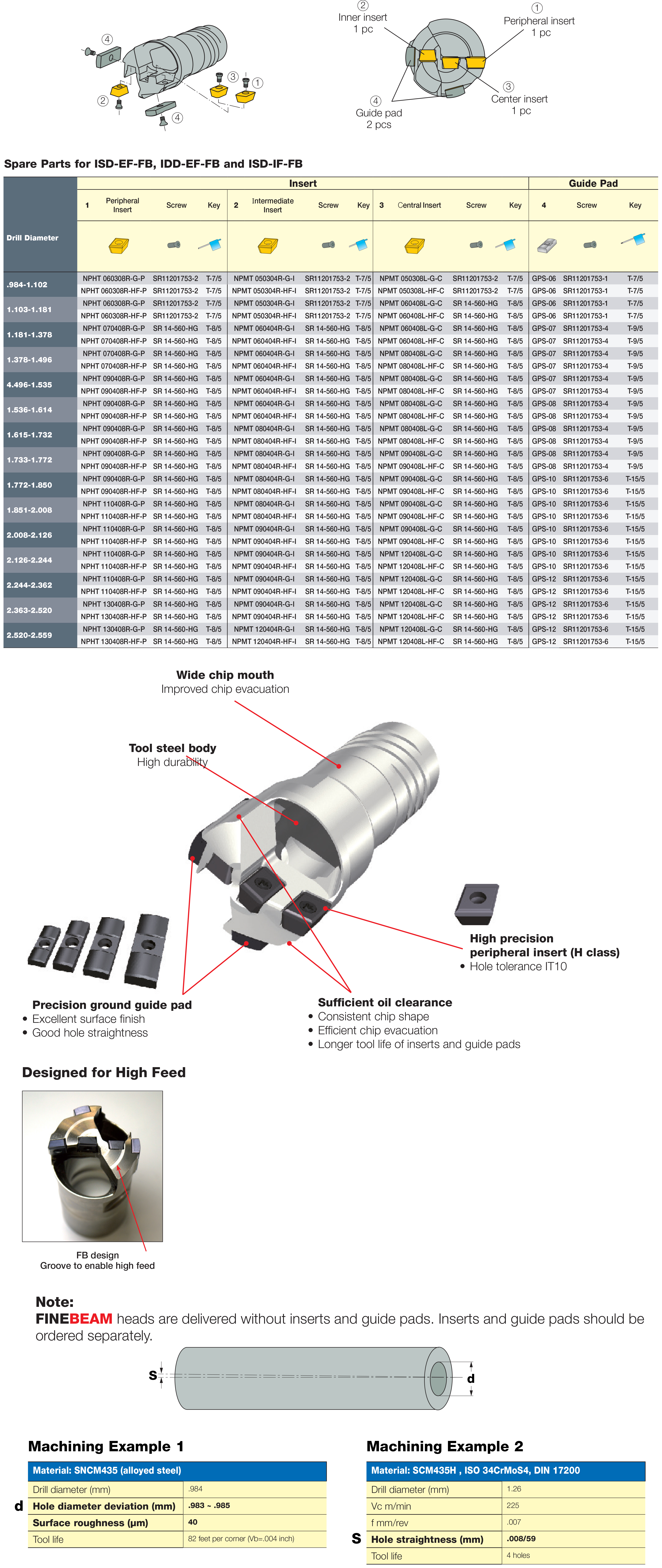

| Remarks | Inserts and guide pads to be ordered separately Ordering example: ISD-IF 1.697-FB For head clamping wrench sizes, quotation form and user guide, click on More Info |
